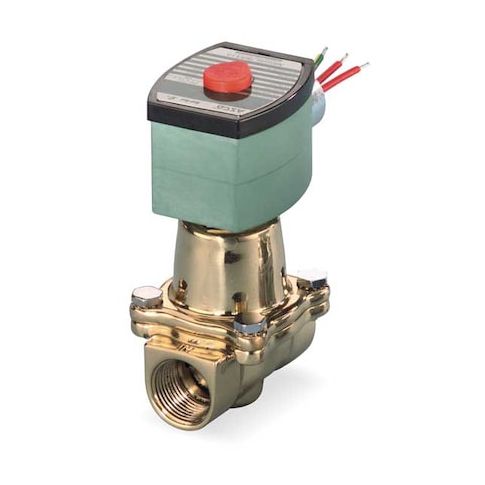

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Temperature MPN:8222G093

• The ASCO - 8222G093 is a 2-way, 2-position, normally closed solenoid valve rated for operation with hot water and steam within the specified maximum fluid temperatures (210°F for water, 353°F for steam). It features a brass valve body with a diaphragm valve design and pilot-operated actuation. The valve is rated for hot water up to 210°F and steam up to 353°F. It includes a coil rated for 120V AC at 60 Hz with a watertight enclosure and Class F insulation. The valve is rated for use with hot water and steam within the specified temperature and pressure ranges (210°F water

• 353°F steam
• 150 psi hot water
• 125 psi steam).

  Key Features:

  • - Valve Body: Brass construction with Y-shape design
  • - Valve Type: High Temperature diaphragm, pilot-operated
  • - Valve Configuration: 2-Way, 2-Position, Normally Closed
  • - Fluid Media: Hot water and steam
  • - Maximum Fluid Temperatures: The valve is rated for hot water up to 210°F and steam up to 353°F
  • - Operating Pressure Differential: 150 psi hot water, 125 psi steam
  • - Orifice Diameter: 5/8 in
  • - Connections: Inlet and outlet NPTF threaded, nominal pipe size 3/8 in
  • - Coil: Included 120V AC, 60 Hz, 10.1 W, Class F insulation, watertight enclosure
  • - Ambient Temperature Range: 32°F to 125°F
  • - Seal Material: PTFE
  • - Dimensions: 2-3/4 in length, 2-5/16 in width, 3-27/32 in height
  • - Environmental Rating: Indoor, Outdoor, Hazardous, Washdown
  • - Certifications: CSA and UL Listed
