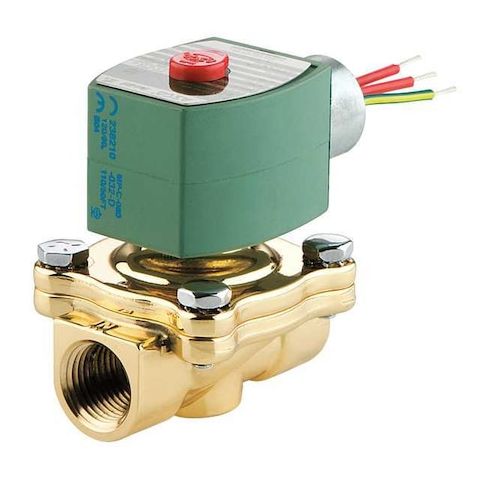

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 120V AC, Manual Operator, Brass MPN:8210G004MO
The ASCO 8210G004MO is a reliable and efficient solenoid valve designed for a wide range of applications, including air, inert gas, light oil, and water systems. Its normally closed starting configuration and pilot-operated design make it ideal for use in industrial and commercial environments where precise control and safety are paramount. With a brass body and NPTF connections, this valve is built to withstand harsh conditions and provides long-lasting performance. Suitable for indoor and outdoor use, it's perfect for applications such as HVAC, water treatment, and industrial process control, offering reliable operation and minimal maintenance requirements.
Top product features:
- The valve features a pilot-operated design.
- The valve has a normally closed starting configuration.
- The valve includes a manual operator.
Top product applications:
- Air Compressor Systems
- Industrial Process Control Systems
- Water Treatment Plants
The ASCO 8210G004MO is a brass-bodied, 2-way, 2-position pilot-operated solenoid valve with a normally closed starting configuration. Media compatibility: Air, Inert Gas, Light Oil, Water. Ambient operating temperature range: 14°F to 140°F
- maximum fluid temperature: 180°F. The valve features NPTF inlet and outlet connections with a nominal 1-inch pipe size and a 1-inch orifice diameter. Mounting orientation: Vertical. Enclosure rating: IP66
- suitable for indoor and outdoor environments. The valve is UL listed and includes the coil and seals necessary for installation.
Key Features:
- - Body Material: Brass
- - Valve Design: 2-Way/2-Position
- - Operation Type: Pilot Operated
- - Valve Starting Configuration: Normally Closed
- - Valve Ways: 2-Way
- - Media Compatibility: Air, Inert Gas, Light Oil, Water
- - Maximum Operating Pressure Differential: 150 psi (Air/Inert Gas, Water), 100 psi (Light Oil)
- - Minimum Operating Pressure Differential: 5 psi (Air/Inert Gas, Light Oil, Water)
- - Electrical Voltage: 120V AC
- - Coil Enclosure: Without Junction Box, Watertight
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in Conduit Hub
- - Response Time: 1 second
- - Seal Material: NBR
- - Environmental Rating: Indoor, Outdoor
- - Dimensions (L x W x H): 2-13/16 in x 2-5/16 in x 3-11/16 in
- - Includes: Coil and Seal
- - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
- - IP Rating: 66
- - Wattage: 6.1 W
- - Mounting Orientation: Vertical
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 7.70
- Package Height: 6.10
- Package Weight: 5.30
