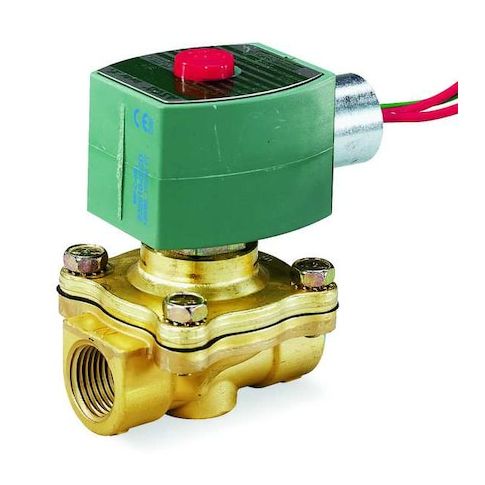

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Flow, Brass MPN:8210G094V

• The ASCO 8210G094V is a pilot-operated, 2-way/2-position solenoid valve with a normally closed starting configuration, designed for controlling the flow of air, inert gases, and water. It features a brass body and is suitable for indoor and outdoor environments with an IP66 rating for protection against dust and water ingress. The valve operates with a nominal electrical supply of 120V AC at 50 or 60 Hz, incorporating a coil with Class F insulation. It has a high flow design with a 5/8 inch orifice diameter and a flow coefficient (Cv) of 4, Maximum differential pressure: 150 psi (Air, Inert Gas, Water). The valve mounts vertically and includes the coil and sealing components needed for application.

  Key Features:

  • - Valve Design: 2-Way/2-Position, pilot operated
  • - Starting Configuration: Normally Closed
  • - Body Material: Brass
  • - Orifice Diameter: 5/8 in
  • - Flow Coefficient (Cv): 4
  • - Nominal Pipe Size: 1/2 in with NPTF inlet and outlet connections
  • - Maximum Operating Pressure Differential: 150 psi (Air/Inert Gas, Water)
  • - Operating Temperature Range: 14°F to 140°F ambient
  • fluid temperature up to 180°F
  • - Electrical: 120V AC, 50/60 Hz
  • 10.1 W coil power
  • Class F coil insulation
  • - Coil Enclosure: Watertight, without junction box
  • electrical connection via 1/2 in conduit hub
  • - Environmental Rating: Indoor and Outdoor use
  • IP66 rated
  • - Flow Coefficient (Cv): 4
  • - Mounting Orientation: Vertical
  • - Seal Material: FKM
  • - Includes: Coil and seal
  • - Dimensions: Overall length 3-9/16 in
  • overall height 4-3/16 in
  • overall width 1-21/32 in
  • - Response Time: 1 second
  • - Standards: UL Listed
