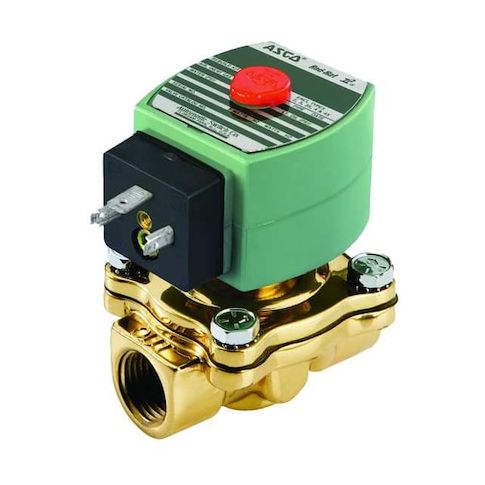

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 110/120V AC, High Flow, Brass MPN:SC8210G034

• The ASCO SC8210G034 is a pilot-operated, 2-way/2-position solenoid valve designed for controlling commercial and industrial gas burners. It utilizes an energized coil to move a plunger, opening or closing the flow path to regulate the passage of fuel oil and gas. The valve has a normally open configuration. Environmental Rating: Indoor and Outdoor use. It includes the coil and sealing components needed for installation. The valve has a brass body and features NPTF inlet and outlet connections sized for 1/2 inch nominal pipe size, with vertical mounting orientation supported.

  Key Features:

  • - Valve Type: Pilot-operated
  • - Valve Design: 2-Way/2-Position, Normally Open
  • - Body Material: Brass
  • - Media Compatibility: Fuel Oil, Gas
  • - Nominal Pipe Size: 1/2 in with NPT thread type (inlet and outlet NPTF)
  • - Orifice Diameter: 5/8 in
  • - Operating Voltage: 110/120V AC at 50 Hz and 60 Hz
  • - Wattage: 10.1 W
  • - Operating Pressure Differential Maximums: 150 psi for air/inert gas and water
  • 125 psi for light oil
  • - Operating Pressure Differential Minimums: 0 psi across air/inert gas, light oil, and water
  • - Fluid Temperature Maximum: 180°F
  • - Ambient Temperature Range: 14°F minimum to 140°F maximum
  • - Coil Insulation Class: F
  • - Coil Enclosure: Without Junction Box
  • electrical connections via 1/2 in conduit hub
  • - Environmental Rating: Indoor and Outdoor use
  • - Includes: Coil and seal components (NBR seal material)
  • - Physical Dimensions: Overall length 3-25/32 in, height 4-5/32 in, width 2-5/16 in
  • - Response Time: 1 second
  • - Gas Capacity/BtuH Rating: 188,000 BtuH
  • - Standards: CSA and UL for General Purpose
