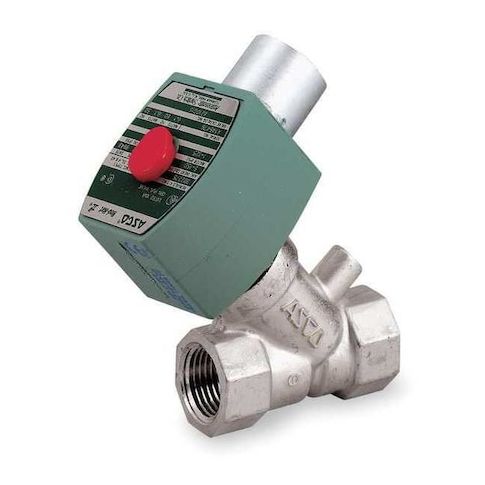

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 24V DC, High Flow, Brass, NBR MPN:8210G015

• The ASCO 8210G015 is a 2-way, 2-position pilot-operated solenoid valve with a normally closed starting configuration designed to control the flow of air, inert gas, and water. It features a brass body and includes both the coil and sealing components required for installation. The valve is rated for a nominal pipe size of 1/2 inch with NPT thread type connections (inlet and outlet NPTF). It is rated to operate within an ambient temperature range of 14 to 140°F and is rated for fluid temperatures up to 150°F. The valve supports a maximum operating differential pressure of 40 psi for air/inert gas and 125 psi for water, with minimum differentials of 5 psi for each media.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Closed
  • - Operation Type: Pilot Operated
  • - Body Material: Brass
  • - Nominal Pipe Size: 1/2 in with NPT thread type
  • - Orifice Diameter: 7/16 in
  • - Media Compatibility: Air, Inert Gas, Water
  • - Includes Coil: Yes
  • Includes Seal: Yes
  • - Electrical: 24V DC, 11.6 W wattage, 1/2 in Conduit Hub connection
  • - Coil Enclosure: Without Junction Box, Watertight
  • - Environmental Rating: Indoor, Outdoor
  • IP Rating: 66
  • - Mounting Orientation: Vertical
  • - Response Time: 1 second
  • - Dimensions: Overall Height 3-3/8 in, Length 3-1/4 in, Width 2-5/16 in
  • - Valve Starting Configuration: Normally Closed
  • - Seal Material: NBR
  • - Maximum Ambient Temperature: 140°F
  • Minimum Ambient Temperature: 14°F
  • - Maximum Fluid Temperature: 150°F
  • - Maximum Operating Pressure Differential: 40 psi (Air/Inert Gas), 125 psi (Water)
  • - Minimum Operating Pressure Differential: 5 psi (Air/Inert Gas, Water)
  • - Standards: UL Listed
