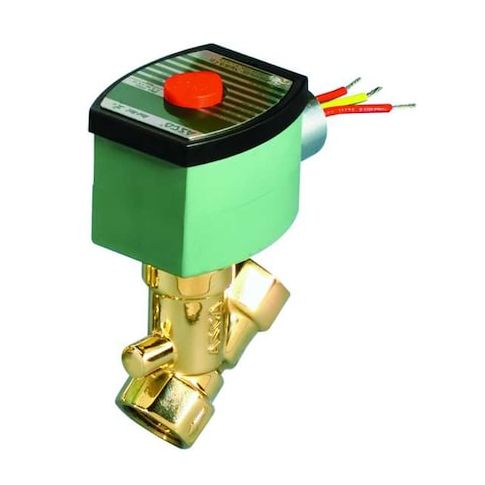

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, Medium Vacuum, Brass MPN:8030G013VM

• The ASCO 8030G013VM is a direct-acting, normally closed solenoid valve designed for controlling the flow of air and inert gases. Constructed with a brass body and NBR seals, this 2-way, 2-position valve features a 3/8 inch orifice and nominal pipe size. It supports applications including collating, dispensing, gas shutoff, tank draining, and vacuum holding. The valve can be mounted horizontally or vertically and includes a coil rated for 120V AC operation at 50 and 60 Hz frequencies. IP66 ingress protection rating

• enclosure rated IP66. It is equipped with a watertight coil enclosure with no junction box. The product comes with both coil and seal included.

  Key Features:

  • - Body Material: Brass
  • - Seal Material: NBR (Buna-N)
  • - Valve Design: 2-Way/2-Position
  • - Valve Starting Configuration: Normally Closed
  • - Operation Type: Direct Acting
  • - Orifice Diameter: 3/8 in
  • - Nominal Pipe Size: 3/8 in
  • - Voltage: 120V AC
  • - Wattage: 10.1 W
  • - Electrical Connections: 1/2 in Conduit with 18 in Leads
  • - Coil Insulation Class: F
  • - Coil Enclosure: Without Junction Box, Watertight
  • - Includes Coil: Yes
  • - Includes Seal: Yes
  • - Maximum Fluid Temperature: 180°F
  • - Media Compatibility: Air, Inert Gas
  • - Maximum Operating Pressure Differential: 150 psi Air/Inert Gas
  • - Minimum Operating Pressure Differential: 15 psi Air/Inert Gas
  • - Center Line Pipe Center Size: 3-9/16 in
  • - Overall Dimensions (L x W x H): 2 in x 2 in x 4 in
  • - Inlet and Outlet Connection Type: NPTF
  • - Thread Type: NPT
  • - IP Rating: 66
  • - NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
