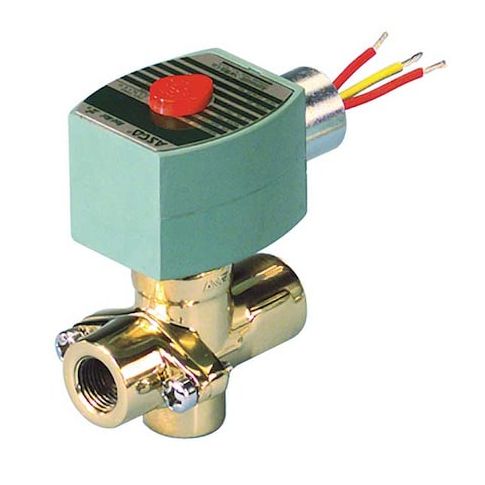

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, Self-Cleaning, Brass MPN:8267G019
The ASCO 8267G019 solenoid valve is a reliable and efficient solution for controlling the flow of steam, water, and other compatible media in various industrial applications. Its 2-way, 2-position normally closed design and self-cleaning mechanism ensure smooth operation and minimize downtime. Suitable for use in a wide range of environments, from indoor to outdoor settings, this valve is ideal for applications such as HVAC systems, water treatment plants, and steam power systems. With its compact design and UL Listed certification, the ASCO 8267G019 provides a cost-effective and safe solution for controlling fluid flow in a variety of industries.
Top product features:
- Self-cleaning design to reduce maintenance needs
- Operating temperature range of 14°F to 140°F for versatile application
- Coil enclosure rated watertight without a junction box for increased reliability
Top product applications:
- Steam Control Systems
- Water Treatment Systems
- Industrial Automation Systems
The ASCO - 8267G019 is a 2-way, 2-position normally closed solenoid valve designed for controlling the flow of steam, water, and other compatible media. It operates with a brass body and a PPS seal, rated for operation within an ambient temperature range of 14°F to 140°F and rated for steam temperatures up to 250°F. This valve includes a coil and seal, featuring a coil enclosure rated watertight without a junction box, and electrical connections with a 1/2 inch conduit and 18-inch leads. It operates at 120V AC and 60 Hz frequency with a coil wattage of 16.1 W. Environmental Rating: Indoor, Outdoor. UL Listed
- NEMA enclosure ratings: 1, 2, 3, 3S, 4, 4X.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Body Material: Brass
- - Seal Material: PPS
- - Media Compatibility: Steam, Water
- - Maximum Fluid Temperature: 250°F (Steam)
- - Operating Ambient Temperature: 14°F to 140°F
- - Maximum Operating Pressure Differential: 15 psi (Steam, Water)
- - Orifice Diameter: 1/2 in
- - Flow Coefficient (Cv): 9.7
- - Coil Insulation Class: H
- - Electrical Voltage: 120V AC, 60 Hz
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Coil Enclosure: Watertight
- - Environmental Rating: Indoor, Outdoor
- - Includes: Coil and Seal
- - Dimensions: Overall Height 4-15/16 in, Overall Length 3-7/16 in, Overall Width 2-9/32 in
- - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.20
- Package Height: 8.60
- Package Weight: 2.75
