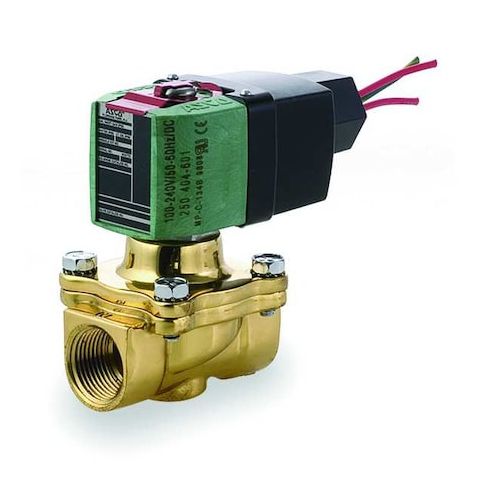

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 100V to 240V AC/DC, High Flow MPN:8210P093
The ASCO 8210P093 is a high-performance solenoid valve designed for precise control of air, inert gas, and water flow in a variety of applications. Ideal for use in industrial, commercial, and residential settings, this 2-way, 2-position valve offers automated flow control with a fast response time of 1 second. Its high flow design and brass body construction ensure reliable performance in harsh environments, while its compact size makes it easy to integrate into existing systems. Suitable for use in HVAC, water treatment, and other fluid control applications, this valve provides reliable and efficient operation.
Top product features:
- Automated flow control with a response time of 1 second
- High flow valve design with a 5/8 inch orifice diameter
- IP66 protection for indoor and outdoor use
Top product applications:
- Automated Lab Equipment
- Medical Equipment Control Systems
- Industrial Process Control Systems
The ASCO 8210P093 is a 2-way, 2-position pilot-operated solenoid valve with a normally closed configuration, designed to control the flow of air, inert gas, and water. It features a high flow valve design with a 5/8 inch orifice diameter and uses a brass body construction. Temperature ratings: ambient 14°F to 140°F
- fluid temperature rating up to 180°F. It accommodates a nominal pipe size of 3/8 inch with NPT threaded inlet and outlet connections. This valve provides automated flow control with a response time of 1 second. Coil insulation: Class H
- rated for 100V to 240V AC/DC operation at 60 Hz, consuming 1.5 watts of power.
Key Features:
- - Valve Type: Pilot Operated, High Flow
- - Configuration: 2-Way/2-Position, Normally Closed
- - Body Material: Brass
- - Orifice Diameter: 5/8 in
- - Pipe Size: 3/8 in Nominal
- - Connections: NPT inlet and outlet
- - Operating Pressure: Max 350 psi (Air/Inert Gas), 150 psi (Water)
- - Temperature ratings: ambient 14°F to 140°F
- fluid temperature rating up to 180°F
- - Electrical: 100V to 240V AC/DC, 60 Hz
- 1.5 W coil power
- 1/2 in conduit hub connection
- - Environmental suitability: Indoor/outdoor use
- IP66 protection
- NEMA 1, 2, 3, 3S, 4, 4X
- - Coil insulation: Class H
- - Includes Coil and Seal
- - Dimensions: Overall Height 3-13/16 in
- Length 2-3/4 in
- Width 2-5/16 in
- - Response Time: 1 second
- - Protection Ratings: IP66, NEMA 1, 2, 3, 3S, 4, 4X
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.10
- Package Height: 4.90
- Package Weight: 2.45
