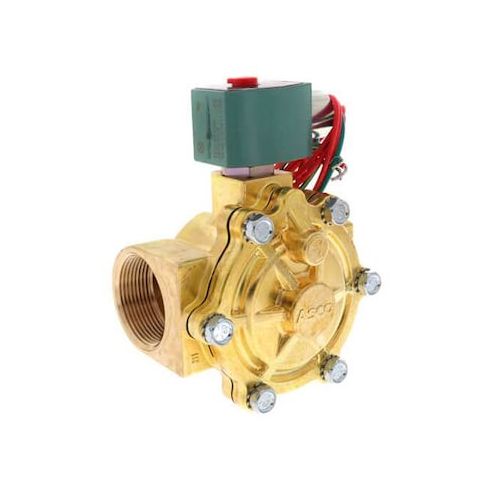

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 120V AC, High Flow, Brass MPN:8210G022
The ASCO 8210G022 Solenoid Valve is a reliable and efficient solution for various industrial applications, including water treatment, oil and gas, and HVAC systems. Its high flow rate and 2-way, 2-position design make it ideal for controlling fluid flow and pressure in demanding environments. The valve's normally closed configuration ensures safe operation, while its brass body and NBR seals provide durability and resistance to corrosion. With its compact design and IP66-rated enclosure, the ASCO 8210G022 Solenoid Valve is perfect for use in harsh conditions, offering a reliable and long-lasting solution for a wide range of industrial applications.
Top product features:
- High Flow, Pilot Operated Valve Design
- Normally Closed, 2-Way, 2-Position Valve Configuration
- Coil Insulation Class F for 120V AC Power Operation
Top product applications:
- Oil and Gas Industry: The ASCO 8210G022 Solenoid Valve is suitable for use in oil and gas applications where high flow rates and pressures are required, such as in wellhead control and pipeline management systems.
- Water Treatment and Distribution: The valve's high flow capacity and ability to handle a wide range of fluids, including water, make it an ideal choice for water treatment and distribution systems, such as municipal water supply and wastewater treatment plants.
- Automotive and Industrial Hydraulics: The ASCO 8210G022 Solenoid Valve can be used in automotive and industrial hydraulic systems where high flow rates and pressures are required, such as in braking and transmission systems, and in applications where precise control is necessary.
The ASCO 8210G022 Solenoid Valve is a 2-way, 2-position pilot-operated valve with a normally closed configuration. It features a brass body and NBR seals and operates on 120V AC power at 50/60 Hz with a coil insulation class F. Fluids compatibility: air, inert gas, light oil, and water as specified by the manufacturer.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Valve Type: High Flow, Pilot Operated
- - Material: Brass Body, NBR Seal Material
- - Electrical: 120V AC, 6.1 W Wattage, Coil included, 1/2 in Conduit Hub connection
- - Operating Conditions: Ambient Temperature 14°F to 140°F
- Fluid Temperature up to 180°F
- - Pressure Ratings: Maximum Operating Pressure Differential 150 psi (Air/Inert Gas and Water), 100 psi (Light Oil)
- Minimum Differential 5 psi
- - Flow Capacity: Coefficient of Volume (Cv) 22.5
- Orifice Diameter 1-1/4 in
- - Connections: Inlet and Outlet NPTF thread type
- Nominal Pipe Size 1-1/2 in
- - Mounting Orientation: Vertical
- - Enclosure: Coil enclosure IP66-rated (water ingress protection)
- NEMA ratings 1, 2, 3, 3S, 4, 4X
- IP Rating 66
- - Dimensions: Overall Height 6-1/8 in, Length 4-3/8 in, Width 3-15/16 in
- - Response Time: 1 second
- - Standards: UL Listed
