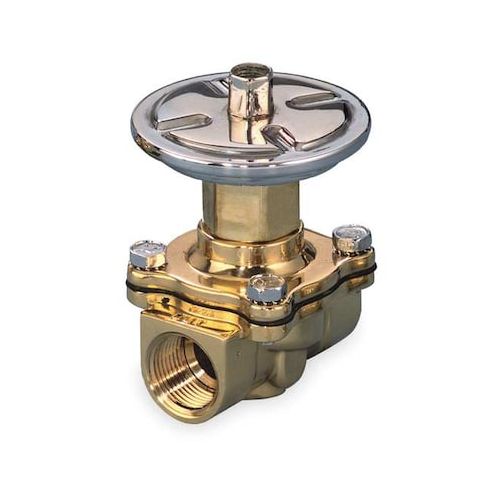

RedHat Air Operated Valve, 2-Way, NC, 3/4 In, FNPT MPN:P210D009
RedHat Air Operated Valve, 2-Way, NC, 3/4 In, FNPT
The RedHat Air Operated Valve is a reliable and versatile solution for controlling the flow of gases, steam, and water in various industrial applications. With its pneumatically actuated diaphragm design, this valve offers precise control and consistent performance in demanding environments. Its normally closed (NC) configuration ensures safe shutdown in case of an emergency. Suitable for use in a range of industries, including manufacturing, oil and gas, and power generation, this valve is a valuable addition to any facility looking to optimize their fluid control systems. Its compact design and easy installation make it an ideal choice for new and existing systems.
Top product features:
- Pneumatically Actuated Diaphragm Valve allows for remote operation of the valve using compressed air.
- Normally Closed (NC) valve deactivation provides a default closed position when power is lost or air supply is interrupted.
- Buna-N diaphragm and seal materials provide chemical resistance and durability in applications involving gas, steam, and water.
Top product applications:
- Steam distribution systems
- Industrial water treatment plants
- Gas supply lines
Pneumatically Actuated Diaphragm Valve, Coefficient of Volume (Cv) 5.5, Nominal Valve Size 3/4 in, Actuator Air Port Connection 1/8 in FNPT, Connection Type - Side 1 NPT, Connection Type - Side 2 NPT, For Media Gas, Steam, Water, Diaphragm Material Buna-N, Operating Temperature - Maximum 180 Degrees F, Maximum Pressure - Operating 125 psi, Valve Deactivated State Normally Closed (NC), Body Material Brass, Diaphragm Valve Type 2-Way, Seal Material Buna-N, Overall Length 2.81 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.10
- Package Height: 5.00
- Package Weight: 1.90
Product info last updated on March 10, 2026 9:30pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
