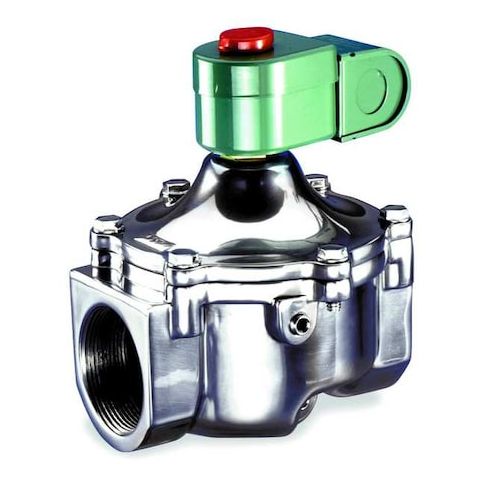

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 120V AC, High Flow, NBR MPN:8215B070CSA
The ASCO 8215B070CSA Solenoid Valve is a high-performance, 2-way, 2-position valve designed for fast and automated fluid control in a variety of applications. With its normally closed configuration and high flow rate, it is ideal for use in industrial processes, water treatment, and HVAC systems. The valve's aluminum body and NBR seals ensure durability and resistance to corrosion, while its compact size and IP65 rating make it suitable for indoor and outdoor use. Its fast response time of 120 milliseconds enables precise control and efficient operation, making it a reliable choice for demanding applications.
Top product features:
- Fast and automated fluid control with a response time of 120 milliseconds
- High flow rate with a flow coefficient (Cv) of 35
- Normally closed configuration with a fast and reliable shut-off
Top product applications:
- Automated Water Treatment Systems
- Medical Equipment and Devices
- Industrial Process Control Systems
ASCO 8215B070CSA is a 2-way, 2-position direct-acting solenoid valve with a normally closed configuration. Constructed with an aluminum body and NBR seals, it provides fast and automated fluid control with a response time of 120 milliseconds. The valve includes a coil and is rated for operation within an ambient temperature range of 14°F to 140°F and fluid temperatures up to 125°F. Environmental rating: Indoor/Outdoor.
Key Features:
- - Valve Design: 2-Way/2-Position with Normally Closed configuration
- - Valve Type: High Flow
- - Body Material: Aluminum
- - Seal Material: NBR
- - Orifice Diameter: 1-5/8 in
- - Nominal Pipe Size: 1-1/2 in
- - Connection Types: Inlet and Outlet NPTF threads with NPT thread type
- - Coil: Included with general purpose enclosure and Class F insulation
- - Electrical Connection: 1/2 in Conduit with 18 in Leads
- - Voltage: 120V AC at 50/60 Hz
- - Wattage: 15.4 W
- - Flow Coefficient (Cv): 35
- - Operating Pressure Differential: 0 to 25 psi for air/inert gas and water
- - Ambient Temperature Range: 14°F to 140°F
- Maximum Fluid Temperature: 125°F
- - Environmental rating: Indoor/Outdoor
- - Response time: 120 milliseconds
- - Dimensions: Overall Height 6-13/16 in
- Length 5 in
- Width 5-3/8 in
- - Standards: CSA, UL
- - IP Rating: IP65
- NEMA Enclosure Rating: 1
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.60
- Package Width: 7.50
- Package Height: 6.10
- Package Weight: 4.00
