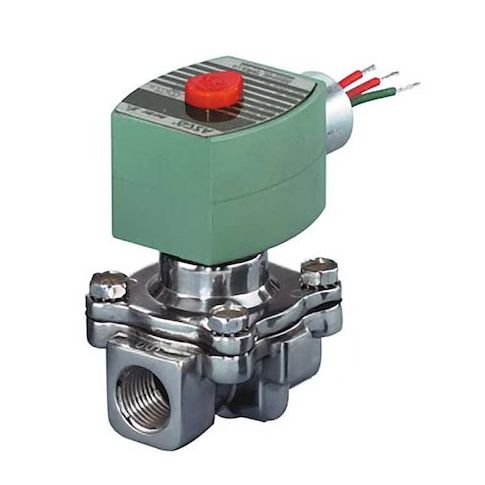

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 12V DC, High Flow, Aluminum MPN:8215G030

• The ASCO 8215G030 is a 2-way, 2-position direct acting solenoid valve with a normally closed starting configuration. It is designed for air and vacuum service, controlling the flow of air and fuel gas. The valve features an aluminum body and NBR seals, suitable for ambient temperatures ranging from 32°F to 104°F and fluid temperatures up to 125°F. It operates at 12V DC with a power consumption of 10.1 watts and includes a coil with an IP65-rated watertight enclosure suitable for indoor and outdoor use

• hazardous-location certification not indicated. The valve's orifice diameter is 3/4 inch, and it has a nominal pipe size of 3/4 inch with NPTF inlet and outlet connections.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Closed
  • - Operation Type: Direct Acting
  • - Body Material: Aluminum
  • - Seal Material: NBR
  • - Media Compatibility: Air, Fuel Gas
  • - Ambient Temperature Range: 32°F to 104°F
  • - Fluid Temperature Maximum: 125°F
  • - Voltage: 12V DC
  • - Wattage: 10.1 W
  • - Coil Enclosure: Without Junction Box, Watertight
  • - Environmental Usage: Indoor and outdoor use per IP65
  • hazardous-location certification not indicated
  • - Electrical Connections: 18 in Leads
  • - Orifice Diameter: 3/4 in
  • - Nominal Pipe Size: 3/4 in
  • - Connections: Inlet and Outlet NPTF
  • - Flow Coefficient (Cv): 5.1
  • - Maximum Operating Pressure Differential: 50 psi for Air/Inert Gas and Water
  • - Response Time: 120 msec
  • - Includes Coil: Yes
  • - Includes Seal: Yes
  • - Certification: CSA, FM, UL
  • - NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
  • - IP Rating: IP65
