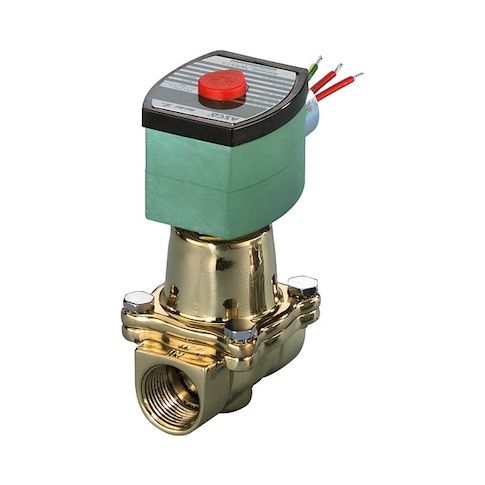

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Temperature MPN:8222G002
The ASCO 8222G002 solenoid valve is a high-performance solution for controlling steam flow in industrial applications. Designed for high-temperature steam service up to 353°F, this 2-way/2-position valve features a brass body with PTFE seals and operates within a wide ambient temperature range. Suitable for use in various industries, including oil and gas, chemical processing, and power generation, this valve provides reliable and precise control of steam flow. Its compact design and NEMA-rated enclosure make it an ideal choice for applications where space is limited, while its UL listing ensures compliance with safety standards.
Top product features:
- Pilot-operated for controlled flow actuation
- Has a normally closed starting configuration
- Comes with a brass body and PTFE seal material for high-temperature steam service
Top product applications:
- Steam Power Plants
- Industrial Steam Systems
- High-Temperature Applications
The ASCO 8222G002 is a pilot-operated, 2-way/2-position solenoid valve designed for controlling the flow of steam. It features a brass body with PTFE seals and is rated for high-temperature steam service up to 353°F. The valve operates within an ambient temperature range of 14°F to 140°F and has a nominal pipe size of 1/2 inch with NPTF inlet and outlet connections. It comes with an integrated coil compatible with 120V AC power at 50/60 Hz and a wattage rating of 17.1 W. The valve is normally closed by default.
Key Features:
- - Valve Type: High Temperature, pilot-operated for controlled flow actuation
- - Valve Design: 2-Way/2-Position with normally closed starting configuration
- - Body Material and Seal: Brass body with PTFE seal material
- - Connections: 1/2 in nominal pipe size with NPTF inlet and outlet thread types
- - Flow and Pressure Ratings: Orifice diameter of 5/8 in, Cv of 3, max operating pressure differential of 125 psi for steam and water
- - Temperature Ratings: Max fluid temperature 353°F for steam
- ambient temperature range 14°F to 140°F
- - Coil Characteristics: Includes coil, 120V AC voltage, 17.1 W wattage, Class H insulation, and watertight enclosure without junction box
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - Environmental Ratings: NEMA 1, 2, 3, 3S, 4, 4X
- enclosure watertight
- hazardous-location suitability not specified
- - Dimensions: Overall length 2-3/4 in, width 2-9/32 in, height 4-11/16 in
- - Certifications: UL Listed with NEMA ratings 1, 2, 3, 3S, 4, and 4X
- - Includes: Coil and sealing components
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.00
- Package Height: 5.10
- Package Weight: 2.78
