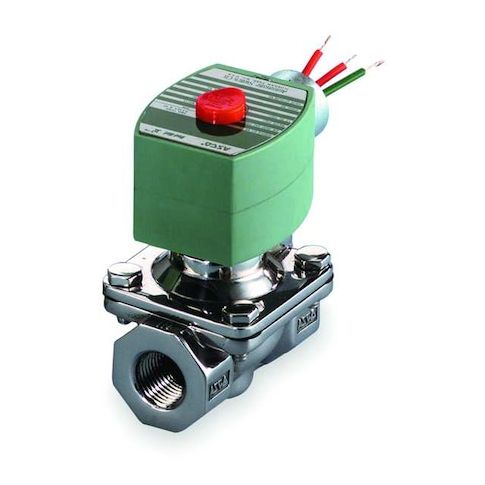

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Flow, NBR MPN:EF8210G087
The ASCO EF8210G087 solenoid valve is a reliable and efficient solution for controlling the flow of air, inert gas, light oil, and water in a variety of applications. With its high flow rate and ability to handle pressures up to 150 psi, this valve is ideal for use in industrial settings, such as manufacturing, oil and gas, and water treatment facilities. Its compact design and explosion-proof coil enclosure make it suitable for use in hazardous locations, while its stainless steel body and NBR seal material ensure durability and resistance to corrosion. It's also UL Listed for recognized standards.
Top product features:
- High Flow Capability
- Normally Closed Configuration
- Explosion Proof, Watertight Coil Enclosure
Top product applications:
- Air Compressor Systems
- Pneumatic Tool Applications
- Water Treatment and Distribution Systems
The ASCO EF8210G087 is a 2-Way, 2-Position pilot-operated solenoid valve with a normally closed configuration designed to control the flow of air, inert gas, light oil, and water. It is rated to handle flows with air, inert gas, light oil, and water within the specified operating pressure and temperature ranges. Constructed with a stainless steel body and NBR seal material, it has a permitted mounting orientation: vertical, and rated for ambient temperatures from 14°F to 140°F. The valve includes the coil and necessary seals and is UL Listed for recognized standards.
Key Features:
- - Nominal Pipe Size: 1/2 in
- Orifice Diameter: 5/8 in
- - Maximum Fluid Temperature: 175°F
- - Operating Pressure Differential: Maximum 150 psi for air/inert gas and water, 125 psi for light oil
- Minimum 0 psi for air/inert gas, light oil, and water
- - Coil Enclosure: Explosion Proof, Watertight with Coil Insulation Class F
- - Electrical Connections: 1/2 in Conduit Hub
- Voltage: 120V AC
- Wattage: 17.1 W
- - Environmental Rating: Indoor and Outdoor use
- - Valve Dimensions: Overall Height 4-3/16 in, Length 2-13/16 in, Width 2-5/16 in
- Center Line Pipe Center Size 3-7/16 in
- - Response Time: 1 second
- - Thread Type: NPT for inlet and outlet connections (NPTF)
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 4.20
- Package Height: 3.10
- Package Weight: 2.65
