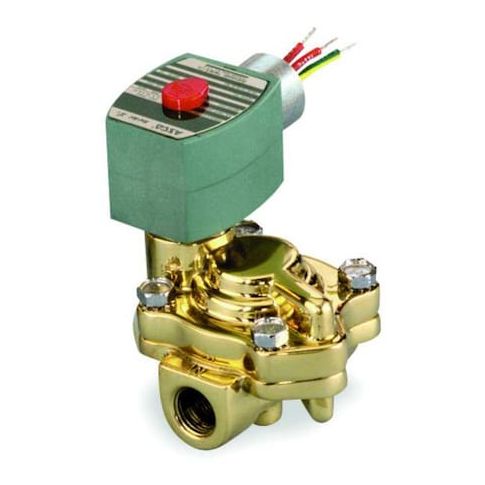

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, Slow-Closing, Brass MPN:8221G005
The ASCO 8221G005 solenoid valve is a reliable and efficient solution for controlling water and light oil flow in piping systems. With its 2-way/2-position, normally closed configuration and slow-closing design, this valve ensures precise control and minimizes fluid waste. Suitable for corrosive, hazardous, and outdoor environments, it features a robust brass body and watertight coil enclosure. Ideal for use in industrial, commercial, and municipal applications, including water treatment, chemical processing, and HVAC systems, this valve provides reliable performance and long lifespan, making it a valuable addition to any piping system.
Top product features:
- Slow-Closing Valve Design
- Pilot-Operated Valve Operation
- Watertight Coil Enclosure with IP66 Rating
Top product applications:
- Water Treatment Systems
- Pilot-operated, slow-closing solenoid valve controls the flow of water and light oil in piping systems.
- Automotive and Industrial Applications
The ASCO 8221G005 is a pilot-operated, slow-closing solenoid valve that controls the flow of water and light oil in piping systems. It operates with a 2-way/2-position, normally closed configuration and includes the coil and seals necessary for installation. Maximum fluid temperature: 180°F
- Cv: 3
- differential pressure rating: 5-150 psi. Environmental rating: Corrosive, Hazardous, Indoor, Outdoor
- watertight coil enclosure rated IP66 and multiple NEMA ratings (1, 2, 3, 3S, 4, 4X).
Key Features:
- - Body Material: Brass
- - Seal Material: NBR (Buna-N)
- - Nominal Pipe Size: 3/4 in
- - Orifice Diameter: 3/4 in
- - Center Line Pipe Size: 3-3/4 in
- - Valve Design: 2-Way/2-Position, Slow-Closing
- - Valve Starting Configuration: Normally Closed
- - Operation Type: Pilot Operated
- - Electrical Voltage: 120V AC
- - Wattage: 6.1 W
- - Coil Enclosure: Without Junction Box, Watertight
- IP Rating: 66
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Cv: 3
- - Maximum Fluid Temperature: 180°F
- - Differential Pressure Rating: 5-150 psi
- - Environmental rating: Corrosive, Hazardous, Indoor, Outdoor
- - Includes: Coil and Seal
- - Inlet and Outlet Connection Type: NPTF with NPT Thread Type
- - Dimensions: Overall Height 4-9/16 in
- Overall Length 2-15/16 in
- Overall Width 3-7/16 in
- - Standards: CSA, UL Listed
- - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 4.20
- Package Height: 3.00
- Package Weight: 2.80
