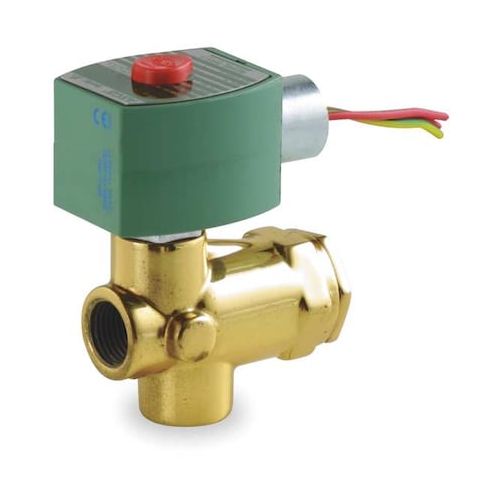

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, High Pressure, Brass MPN:8223G005
The ASCO 8223G005 Solenoid Valve is a high-pressure, 2-way/2-position valve designed for precise control of air, inert gas, light oil, and water in a variety of applications. With its brass body and NBR seals, this valve provides reliable operation in demanding environments. Suitable for use in industrial processes, HVAC systems, and water treatment facilities, it offers precise flow control and automated remote actuation. Its compact design and NPTF connections make it easy to integrate into existing systems, while its high pressure rating ensures reliable performance in harsh conditions. Ideal for applications requiring high flow rates and precise control.
Top product features:
- The valve is designed for pilot-operated control of air, inert gas, light oil, and water.
- The valve features NPTF inlet and outlet connections with a nominal pipe size of 3/4 inch.
- The valve is compatible with a maximum operating pressure differential of 750 psi.
Top product applications:
- Air Compressor Systems
- Automotive Air Brake Systems
- Industrial Process Control Systems
The ASCO 8223G005 is a 2-Way/2-Position, Normally Closed solenoid valve designed for pilot-operated control of air, inert gas, light oil, and water. Constructed with a brass valve body and NBR seals. Remote actuation is automated for regulated flow. Ambient operating temperature range is 14°F to 140°F
- maximum fluid temperature is 200°F. It features NPTF inlet and outlet connections with a nominal pipe size of 3/4 inch and an orifice diameter of 3/4 inch. The valve is compatible with a maximum operating pressure differential of 750 psi and requires a minimum pressure differential of 25 psi across air, inert gas, light oil, and water media. Environmental rating: IP66
- CSA certification.
Key Features:
- - Valve Design: 2-Way/2-Position with Normally Closed starting configuration
- - Operation Type: Pilot Operated
- - Body Material: Brass
- - Seal Material: NBR
- - Nominal Pipe Size: 3/4 in
- Orifice Diameter: 3/4 in
- Center Line Pipe Size: 3-1/4 in
- - Maximum Operating Pressure Differential: 750 psi (Air/Inert Gas, Light Oil, Water)
- - Minimum Operating Pressure Differential: 25 psi (Air/Inert Gas, Light Oil, Water)
- - Voltage: 120V AC
- Wattage: 17.1 W
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Coil Enclosure: Without Junction Box, Watertight
- Coil Insulation Class: F
- Includes Coil: Yes
- - Environmental Rating: IP66
- CSA Certification
- NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
- - Dimensions: Overall Height 5 in
- Length 3-5/8 in
- Width 2 in
- - Valve Type: High Pressure
- Valve Ways: 2-Way
- Valve Positions: 2-Position
- - Includes Seal: Yes
- - Thread Type: NPT
- Inlet and Outlet Connection Type: NPTF
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 4.00
- Package Height: 5.00
- Package Weight: 4.40
