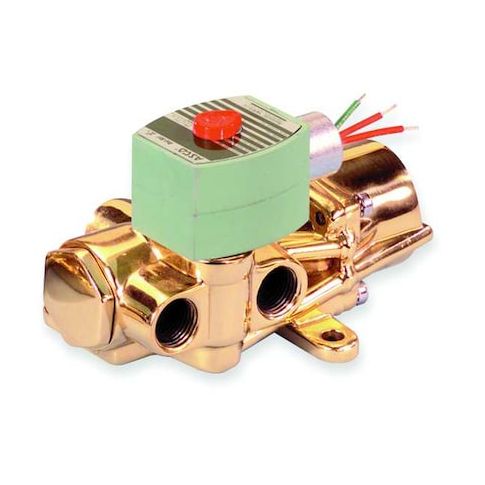

Solenoid Valve, 4-Way, 2-Position, Universal, 3/8 in Pipe Size, 120V AC, NAMUR Mount, Direct Acting MPN:EF8344G072
The ASCO EF8344G072 is a reliable and versatile 4-way, 2-position direct acting solenoid valve designed for various applications. Suitable for controlling the flow of air, inert gas, light oil, and water, this valve is ideal for use in hazardous environments, indoors, and outdoors. Its NAMUR mount and direct acting operation make it easy to install and integrate into existing systems. With a compact design and explosion-proof enclosure, this valve is perfect for applications in industries such as oil and gas, chemical processing, and water treatment, where reliability and safety are paramount.
Top product features:
- The valve is designed for controlling the flow of air, inert gas, light oil, and water.
- The solenoid coil features Class F insulation and an Explosion-proof, watertight enclosure.
- The valve includes NPTF inlet and outlet connections with a nominal pipe size of 3/8 inch.
Top product applications:
- Air Compressor Systems
- Automated Process Control Systems
- Laboratory Gas Distribution Systems
The ASCO EF8344G072 is a 4-way, 2-position direct acting solenoid valve designed for controlling the flow of air, inert gas, light oil, and water. Constructed with a brass body and NBR seals, it includes the coil required for operation and supports installation in either horizontal or vertical orientations. The solenoid coil features Class F insulation and Explosion-proof, watertight enclosure with Class F insulation
- Environmental rating: Hazardous, Indoor, Outdoor. The valve includes NPTF inlet and outlet connections with a nominal pipe size of 3/8 inch and a center line pipe center size of 3 inches. This model operates on 120V AC at 60 Hz with a power consumption of 10.1 watts.
Key Features:
- - Valve Type: NAMUR Mount, 4-Way/2-Position, 2-Position operation
- - Operation Method: Direct Acting
- - Body Material: Brass
- - Seal Material: NBR (Buna-N)
- - Orifice Diameter: 3/8 in
- - Flow Coefficient (Cv): 1.4
- - Maximum Fluid Temperature: 180°F
- - Operating Pressure Differential Range: 10 psi minimum to 150 psi maximum for air/inert gas
- 10 psi minimum to 125 psi maximum for light oil and water
- - Coil Enclosure: Explosion-proof, watertight enclosure with Class F insulation
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - Voltage: 120V AC @ 60 Hz
- - Dimensions: Overall Height 4 in, Length 6 in, Width 3-3/16 in
- - Environmental rating: Hazardous, Indoor, Outdoor
- - Mounting Orientation: Horizontal or Vertical
- - Includes Coil and Seal
- - Thread Type: NPT for both inlet and outlet
- - Standards: ATEX, CSA, FM, IEC, SIL, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 5.30
- Package Height: 5.30
- Package Weight: 6.95
