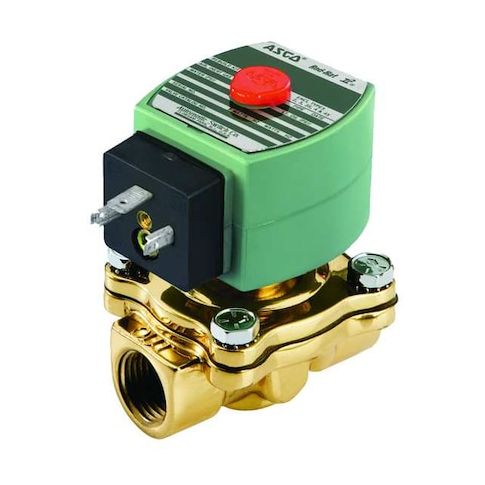

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Flow, Brass MPN:SC8210G093
The ASCO SC8210G093 solenoid valve is a high-performance solution for controlling air, inert gas, and water flow in various industrial applications. Suitable for use in systems with a 0 to 150 psi differential, this pilot-operated, normally closed valve offers reliable control and high flow rates. Constructed with a durable brass valve body, it can withstand harsh environments and extreme temperatures. Ideal for use in HVAC systems, water treatment, and other industrial processes, this valve provides fast response times and easy installation. Its compact design and IP66-rated coil enclosure make it a versatile and reliable choice for a wide range of applications.
Top product features:
- Valve Design: 2-Way/2-Position, Normally Closed
- Valve Type: High Flow
- Operating Pressure Differential: 0 to 150 psi for air, inert gas, and water
Top product applications:
- Air Compressor Systems
- Inert Gas Systems
- Water Treatment Systems
The ASCO SC8210G093 is a pilot-operated, normally closed solenoid valve designed to control the flow of air, inert gases, and water. Constructed with a brass valve body, it operates as a 2-Way/2-Position valve with 5/8 in orifice diameter. This valve is suitable for use with air, inert gas, and water systems within a 0 to 150 psi differential. It is engineered for vertical mounting orientation and includes the coil and seals necessary for installation.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Valve Type: High Flow
- - Orifice Diameter: 5/8 in
- - Valve Body Material: Brass
- - Operation Type: Pilot Operated
- - Nominal Pipe Size: 3/8 in with NPT inlet and outlet connections (NPTF thread type)
- - Electrical: 120V AC, 10.1 W coil wattage, coil insulation Class F, 50 Hz and 60 Hz frequency
- - Coil enclosure: IP66-rated
- no junction box included
- - Electrical Connections: 1/2 in Conduit Hub
- - Environmental Rating: Suitable for Indoor and Outdoor use, IP66 rated
- - Operating Pressure Differential: 0 to 150 psi for air, inert gas, and water
- - Ambient Temperature Range: 14°F to 140°F
- - Maximum Fluid Temperature: 180°F
- - Seal Material: NBR (Buna-N)
- - Dimensions: 5-1/8 in height, 3-3/4 in length, 3-1/4 in width
- - Response Time: 1 second
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 3.50
- Package Height: 5.70
- Package Weight: 2.25
