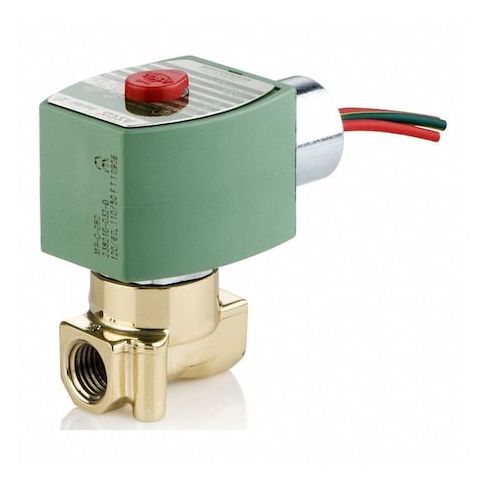

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 110V AC, 120V AC, High Flow MPN:SD8262H011V1V 120/60, 110/50
The ASCO SD8262H011V1V Solenoid Valve is a reliable and efficient solution for controlling fuel oil and gas flow in various applications. Suitable for both indoor and outdoor use, this 2-way, normally closed valve operates in a wide range of temperatures and pressures, making it ideal for use in harsh environments. With its high flow rate and fast response time of just 1 second, this valve ensures precise control and minimizes downtime. Its corrosion-resistant and hazardous-rated design makes it perfect for use in fuel oil and gas systems, ensuring safe and reliable operation in demanding applications.
Top product features:
- The valve is a two-way, direct-acting valve designed to control the flow of fluid.
- The valve has a normally closed starting configuration.
- The valve is rated for use with fuel oil and gas.
Top product applications:
- Fuel Oil Control
- Gas Control
- General Industrial Process Control
The ASCO SD8262H011V1V Solenoid Valve is a two-way, normally closed, direct-acting valve designed to control the flow of fuel oil and gas. It operates with a nominal pipe size of 1/4 inch and includes the coil and sealing components necessary for installation. The valve body is made of brass and the seals are constructed from FKM material. The valve is rated for indoor and outdoor use
- Environmental Rating: Corrosive, Hazardous
- Indoor, Outdoor, with an ambient temperature range down to -13°F and a maximum fluid temperature of 180°F.
Key Features:
- - Valve Type: 2-Way, Direct Acting
- - Valve Starting Configuration: Normally Closed
- - Nominal Pipe Size: 1/4 in with NPTF inlet and outlet connections
- - Body Material: Brass
- Seal Material: FKM
- - Coil: Included
- Wattage: 9.1 W
- Coil Insulation Class: F
- - Electrical Voltage: 110V AC, 120V AC
- Frequency: 50 Hz, 60 Hz
- - Electrical Connections: 1/2 in Conduit Hub
- Coil Enclosure: Without Junction Box, Watertight
- - Operating Temperature: Ambient minimum -13°F
- Fluid maximum 180°F
- - Suitable Media: Fuel Oil, Gas
- - Environmental Rating: Corrosive, Hazardous
- Indoor, Outdoor
- - Operating Pressure Differential Minimum: 0 psi for Air/Inert Gas, Light Oil, Water
- - Orifice Diameter: 3/32 in
- - Mounting Orientation: Horizontal or Vertical
- - Response Time: 1 sec
