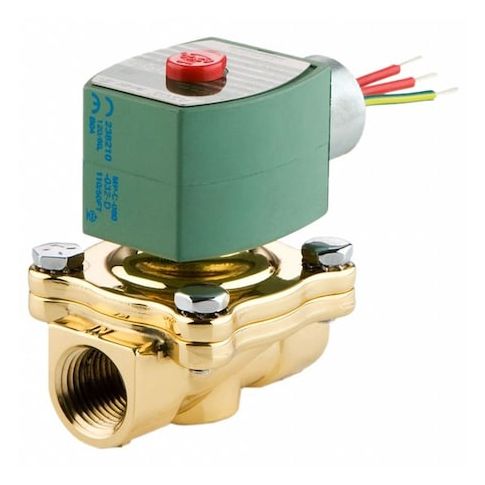

Solenoid Valve, 2-Way, 2-Position, Normally Open, 2 in Pipe Size, 12V DC, High Flow, Pilot Operated MPN:8210G103LF 12/DC
This high-flow, pilot-operated solenoid valve is designed for controlling the flow of air, inert gases, light oil, and water in industrial fluid control systems. Its normally open configuration and 2-inch pipe size make it suitable for a wide range of applications, including HVAC, oil and gas, and water treatment. The valve's high flow rate and fast response time make it ideal for demanding applications, while its compact design and durable construction ensure reliable performance in harsh environments. Its compact design and durable construction ensure reliable performance in harsh environments, making it a valuable addition to any industrial fluid control system.
Top product features:
- High Flow Valve Type
- Normally Open Configuration
- Watertight Coil Enclosure
Top product applications:
- Air Compressor System
- Industrial Process Control Systems
- Pneumatic Tool Control Systems
The ASCO 8210G103LF 12/DC is a 2-way, 2-position pilot operated solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a normally open configuration and a high flow valve type, intended for use with air, inert gases, light oil, and water in industrial fluid control systems. The valve body is made of brass and includes an NBR seal. The valve operates with a nominal 2-inch pipe size and uses NPTF connections for both inlet and outlet. It is suitable for indoor and outdoor use within the ambient temperature range of 14°F to 140°F. The valve includes a coil and seals, with the coil housed in a watertight enclosure and powered by a 12 VDC supply at 16.1 watts. Electrical connections are provided via a 1/2 inch conduit hub, and the valve must be mounted vertically.
Key Features:
- - Valve Type: High Flow, Pilot Operated, 2-Way, 2-Position
- - Starting Configuration: Normally Open
- - Body Material: Brass with NBR Seal
- - Nominal Pipe Size: 2 in
- - Connections: Inlet and Outlet NPTF threads
- - Operating Media: Air, Inert Gases, Light Oil, Water
- - Operating Pressure Differential: Minimum 5 psi
- Maximum 350 psi (Air/Inert Gas), 125 psi (Light Oil, Water)
- - Ambient Temperature Range: 14°F to 140°F
- - Maximum Fluid Temperature: 180°F
- - Electrical: 12 VDC coil, 16.1 W power, watertight coil enclosure
- - Electrical Connection: 1/2 in Conduit Hub
- - Mounting Orientation: Vertical
- - Includes: Coil and seals
- - Response Time: 1 second
- - Environmental Rating: Indoor, Outdoor
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 7.60
- Package Height: 6.00
- Package Weight: 12.35
