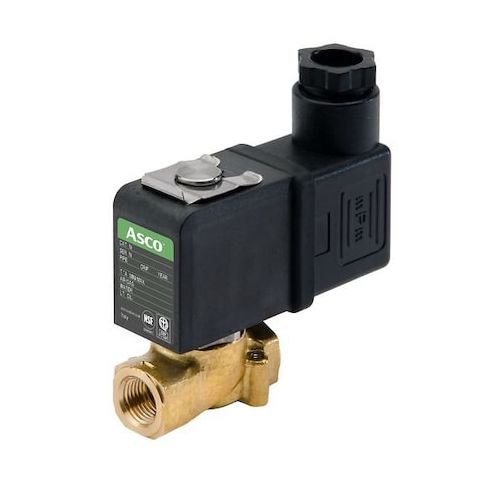

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120V AC, Compact, FKM MPN:SC8256B046V
Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120V AC, Compact, FKM
The Asco Solenoid Valve is a compact, 2-way, 2-position valve designed for indoor use with Air, Inert Gas, Light Oil, and Water. Its direct-acting design and stainless steel body ensure reliable operation in a wide range of applications. Perfect for flow control, this valve offers a Cv of 0.19 and a response time of 20 ms. Suitable for use in HVAC, water treatment, and industrial processes, the valve's compact size and low power consumption make it an ideal choice for space-constrained environments. With certifications from CSA, NSF, and UL, this valve meets the highest standards of quality and safety.
Top product features:
- Direct-acting operation allows for fast and precise control of fluid flow
- Supports both horizontal and vertical mounting orientations for flexibility in installation
- Features a watertight coil enclosure for protection against environmental factors
Top product applications:
- Water Treatment Systems
- Automotive Brake Systems
- Laboratory Gas Control Systems
Valve type: direct-acting
- configuration: 2-way/2-position
- media compatibility: Air, Inert Gas, Light Oil, Water. Media compatibility: Air, Inert Gas, Light Oil, Water. The valve includes a coil and seal, supports both horizontal and vertical mounting orientations
- environmental rating: Indoor. The valve body is constructed of stainless steel, and it operates at a nominal pipe size of 1/8 inch with an orifice diameter of 1/8 inch, providing a Cv of 0.19 for flow control. Electrical specifications include 120V AC at 60 Hz with a coil wattage of 6.3 W. Response time: 20 ms. The valve has a maximum fluid temperature rating of 180°F.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Operation Type: Direct Acting
- - Body Material: Stainless steel
- - Media Compatibility: Air, Inert Gas, Light Oil, Water
- - Connection Type: Inlet and Outlet - NPTF, Thread Type - NPT
- - Nominal Pipe Size: 1/8 in
- Orifice Diameter: 1/8 in
- Center Line Pipe Center Size: 1-13/16 in
- - Operating Pressure Differential Maximum: 135 psi Air/Inert Gas, 80 psi Light Oil, 126 psi Water
- Minimum: 0 psi
- - Coil enclosure: Watertight
- junction box: not included
- Coil Insulation Class: F
- Electrical Connections: DIN
- - Mounting Orientation: Horizontal or Vertical
- - Environmental rating: Indoor
- NEMA Enclosure Rating: 4, 4X
- IP Rating: 66
- - Includes Coil and Seal
- - Response time: 20 ms
- - Seal Material: FKM
- - Overall Dimensions: Length 1-13/16 in, Width 1 in, Height 2 in
- - Wattage: 6.3 W
- Voltage: 120V AC
- Frequency: 60 Hz
- - Certifications: CSA, NSF, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.30
- Package Height: 3.20
- Package Weight: 0.30
