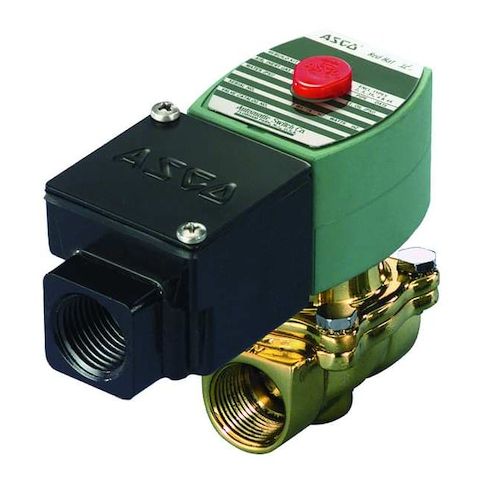

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Flow, Brass MPN:JSF8210G002
The ASCO JSF8210G002 Solenoid Valve is a high-performance solution for controlling flow in a variety of applications, including air, inert gases, light oil, and water systems. Its high flow design and 5/8 inch orifice diameter enable efficient and reliable operation, while its brass construction and PTFE seal ensure durability and resistance to corrosion. Suitable for use in both indoor and outdoor settings, this valve is ideal for applications in manufacturing, oil and gas, and water treatment, where precise control and high flow rates are required. Its compact design and easy mounting options make it a versatile choice for a range of industries and applications.
Top product features:
- High flow design with a 5/8 inch orifice diameter enables automated and remote actuation within specified pressure and temperature ranges.
- The valve body is constructed from brass and includes a PTFE seal for durability and resistance to corrosion.
- The solenoid valve features a junction box with a watertight coil enclosure for protection against environmental factors.
Top product applications:
- Automated control of air, inert gases, light oil, and water flow in industrial processes
- Control of water flow in HVAC systems
- Remote actuation of water flow in irrigation systems
The ASCO JSF8210G002 is a pilot-operated, 2-way/2-position solenoid valve designed for controlling flow of air, inert gases, light oil, and water. Its normally closed valve starting configuration utilizes a high flow design with a 5/8 inch orifice diameter, enabling automated and remote actuation within the specified pressure and temperature ranges. The valve body is constructed from brass and it includes a PTFE seal. This solenoid valve comes equipped with a coil and sealing components and features a junction box with a watertight coil enclosure. Vertical mounting is permitted
- IP66 enclosure rating and NEMA ratings support indoor and outdoor use.
Key Features:
- - Nominal Pipe Size: 1/2 in with NPT thread type and NPTF inlet and outlet connections
- - Maximum Ambient Temperature: 140°F
- Minimum Ambient Temperature: 14°F
- - Maximum Fluid Temperature: 180°F
- - Maximum Operating Pressure Differential: 200 psi for air/inert gas, 135 psi for light oil, 150 psi for water
- - Minimum Operating Pressure Differential: 5 psi for air/inert gas, light oil, and water
- - Coil Specifications: 120V AC voltage, 6.1 W wattage, Class F insulation, 50/60 Hz frequency
- - Electrical Connections: 1/2 in conduit hub
- - Environmental and Enclosure Ratings: Rated for indoor and outdoor use
- IP66 rating
- NEMA 1, 2, 3, 3S, 4, 4X ratings
- - Dimensions: Overall Length 4-15/16 in, Overall Height 3-15/16 in, Overall Width 2-5/16 in
- - Response Time: 1 second
- - Includes: Coil and seal
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 4.20
- Package Height: 3.00
- Package Weight: 1.90
