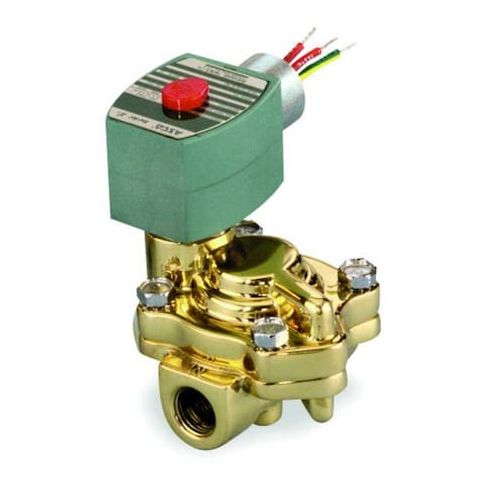

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 120V AC, Slow-Closing, NBR MPN:8221G011
The ASCO 8221G011 Solenoid Valve is a reliable and efficient solution for controlling water flow in a variety of applications. Designed for use in corrosive, hazardous, indoor, and outdoor environments, this valve features a slow-closing mechanism to minimize wear and tear. With its brass body and NBR seals, it provides a durable and corrosion-resistant solution for applications such as irrigation systems, water treatment plants, and industrial processes. Its compact size and easy installation make it ideal for use in tight spaces, and its IP66-rated enclosure ensures reliable operation in harsh conditions.
Top product features:
- Slow-Closing Mechanism
- Pilot-Operated Valve
- Normally Closed Configuration
Top product applications:
- Water treatment systems
- Industrial process control systems
- Automotive cooling systems
The ASCO 8221G011 Solenoid Valve is a 2-Way/2-Position, pilot-operated valve designed to control the flow of water with a normally closed configuration. It is constructed with a brass body and features a slow-closing mechanism. This valve operates at 120V AC with a coil wattage of 6.1 W and includes both the coil and seals for installation. The valve also features an IP66-rated enclosure without a junction box, rated for use in corrosive, hazardous, indoor, and outdoor environments.
Key Features:
- - Valve Type: Slow-Closing, Pilot Operated
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Body Material: Brass
- - Nominal Pipe Size: 1-1/2 in with NPTF inlet and outlet connections
- - Orifice Diameter: 1-1/4 in
- - Flow Coefficient (Cv): 3
- - Operating Pressure Differential (Water/Hot Water): 5 psi minimum, 150 psi maximum
- - Fluid Temperature Maximum: 180°F
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - Includes Coil and Seal Material: NBR
- - Dimensions (Overall Length x Width x Height): 4-3/8 in x 4-1/4 in x 6-1/4 in
- - Environmental Ratings: Corrosive, Hazardous, Indoor, Outdoor
- - IP Rating: 66
- - Standards: CSA, UL Listed
- - Wattage: 6.1 W
- - Center Line Pipe Center Size: 4-3/16 in
- - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.50
- Package Width: 6.00
- Package Height: 7.50
- Package Weight: 5.00
