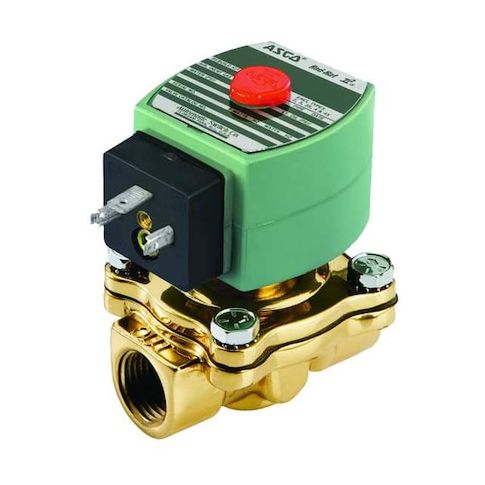

Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/4 in Pipe Size, 110/120V AC, High Flow, Brass MPN:SC8210G035
The ASCO SC8210G035 is a reliable and efficient solenoid valve designed for control of commercial and industrial gas burners. Constructed with a brass body and NBR seal material, this normally open valve controls fuel oil and gas flow via coil actuation, making it ideal for use in a variety of applications, including industrial processes, commercial kitchens, and HVAC systems. With its high flow rate and durable construction, this valve provides consistent performance and long-lasting reliability, reducing downtime and maintenance costs. Its compact design and easy installation make it a great choice for new installations or upgrades.
Top product features:
- 2-Way/2-Position configuration allows for control of fuel oil and gas flow via coil actuation.
- Normally open valve design enables flow of media when the coil is de-energized.
- High Flow design enables efficient control of large volumes of fuel oil and gas.
Top product applications:
- Commercial and industrial gas burners
- Fuel oil and gas flow control systems
- High-flow applications such as large industrial burners or commercial HVAC systems
The ASCO SC8210G035 is a pilot-operated, 2-way/2-position solenoid valve designed for control of commercial and industrial gas burners. Constructed with a brass body and NBR seal material, this normally open valve controls fuel oil and gas flow via coil actuation. It includes the coil and seal, and is rated for indoor and outdoor use with an ambient temperature range from 32°F to 125°F. The valve operates at 110/120V AC with a coil wattage of 10.1 W
- actuation time: 1 second, via 1/2 in conduit hub.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Open configuration
- - Valve Type: High Flow
- - Media Compatibility: Fuel Oil, Gas
- - Maximum Fluid Temperature: 180°F
- - Operating Pressure Differential: 0 to 150 psi (Air/Inert Gas and Water), 0 to 125 psi (Light Oil)
- - Orifice Diameter: 3/4 in
- - Nominal Pipe Size: 3/4 in, with 4 in centerline pipe spacing
- - Connections: NPTF inlet and outlet with NPT thread type
- - Coil: Included, Class F insulation, without junction box
- electrical connection via 1/2 in conduit hub
- - Operating environment: indoor or outdoor use
- - Mounting Orientation: Vertical installation recommended
- - Dimensions: 4-5/16 in length, 2-5/16 in width, 4-21/32 in height
- - Standards: CSA and UL certified
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 4.30
- Package Height: 3.00
- Package Weight: 2.39
