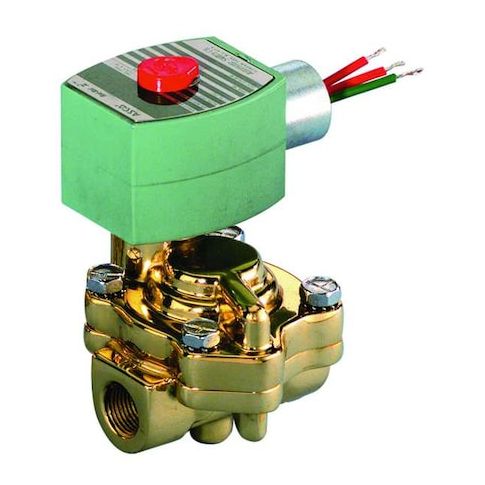

Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/4 in Pipe Size, 120V AC, Diaphragm, Piston MPN:8220G095
The ASCO 8220G095 is a reliable and efficient pilot-operated solenoid valve designed for controlling hot water and steam flow. Its diaphragm valve design with 2-way, 2-position operation makes it ideal for various applications, including HVAC systems, process control, and industrial plumbing. With a temperature range of 14°F to 125°F and maximum fluid temperatures of 210°F for hot water and 353°F for steam, this valve can handle demanding environments. Its brass body and PTFE seals ensure durability and resistance to corrosion, while its 120V AC coil provides easy integration with existing systems.
Top product features:
- The ASCO 8220G095 is a pilot-operated, normally open solenoid valve designed for controlling the flow of hot water and steam.
- It features a diaphragm valve design with 2-way, 2-position operation.
- It has a brass body and PTFE seals, providing a durable and corrosion-resistant construction.
Top product applications:
- Steam Traps
- Water Heaters
- Chilled Water Systems
The ASCO 8220G095 is a pilot-operated, normally open solenoid valve designed for controlling the flow of hot water and steam. Constructed with a brass body and PTFE seals, it features a diaphragm valve design with 2-way, 2-position operation. Ambient temperature range: 14°F to 125°F. Maximum fluid temperatures: 210°F (hot water)
- 353°F (steam). Pressure differential ranges: 5 to 150 psi (hot water)
- 5 to 125 psi (steam).
Key Features:
- - Valve Type: Diaphragm, Piston with 2-Way, 2-Position configuration
- - Valve Starting Configuration: Normally Open
- - Body Material: Brass
- Seal Material: PTFE
- - Orifice Diameter: 3/4 in
- Nominal Pipe Size: 3/4 in
- Center Line Pipe Center Size: 4-1/2 in
- - Operating Pressure Differential: 5 to 150 psi (Hot Water), 5 to 125 psi (Steam)
- - Ambient Temperature Range: 14°F minimum to 125°F maximum
- - Maximum Fluid Temperature: 210°F (Hot Water), 353°F (Steam)
- - Coil Included: Yes
- Coil Insulation Class: H
- Wattage: 16.1 W
- Voltage: 120V AC
- Frequency: 60 Hz
- - Electrical Connections: 1/2 in conduit with 18 in leads
- Coil Enclosure: Without Junction Box, Watertight
- - Inlet/Outlet Connection Type: NPTF with NPT thread type
- - Dimensions: Overall Length 2-25/32 in
- Width 3-3/8 in
- Height 5-5/16 in
- - Environmental Rating: Hazardous, Indoor, Outdoor, Washdown
- - Standards: CSA, UL Listed
- NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.60
- Package Width: 4.40
- Package Height: 3.30
- Package Weight: 3.32
