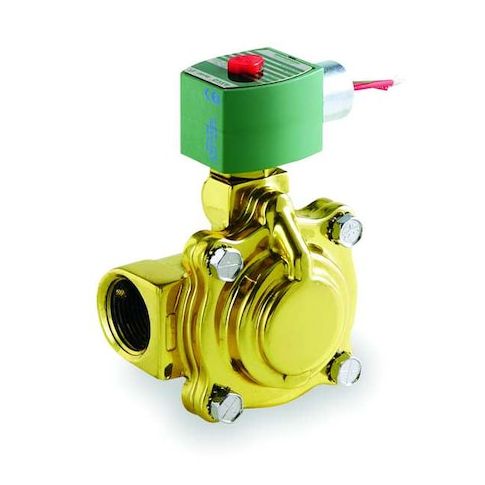

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 120V AC, High Flow, Brass MPN:EF8210G022

• The ASCO EF8210G022 is a 2-way, 2-position pilot-operated solenoid valve designed for controlling the flow of air, inert gas, light oil, and water. It features a normally closed valve starting configuration and Cv: 22.5. The valve includes an coil and seal, allowing automated control of fluid or gas passage. The valve supports vertical mounting orientation. Operating temperature range: ambient 14°F to 140°F

• fluid temperature up to 180°F.

  Key Features:

  • - Valve Ways and Positions: 2-Way, 2-Position
  • - Valve Type and Operation: High Flow, Pilot Operated
  • - Valve Starting Configuration: Normally Closed
  • - Body Material: Brass
  • - Orifice Diameter: 1-1/4 in
  • - Nominal Pipe Size: 1-1/2 in
  • - Connection Types: NPTF inlet and outlet with NPT thread type
  • - Operating Pressure Differential: 5 psi minimum and 150 psi maximum for air/inert gas and water
  • 5 psi minimum and 100 psi maximum for light oil
  • - Flow Coefficient (Cv): 22.5
  • - Electrical: 120V AC voltage, 6.1 W coil wattage, 1/2 in conduit hub connections, coil insulation class F, includes coil
  • - Response Time: 1 second
  • - Coil Enclosure: Explosion Proof, Watertight
  • - Seal Material: NBR
  • - Environmental Rating: Indoor, Outdoor
  • - Overall Dimensions: Height 6-1/8 in, Length 4-3/8 in, Width 3-15/16 in
  • - Standards: UL Listed
