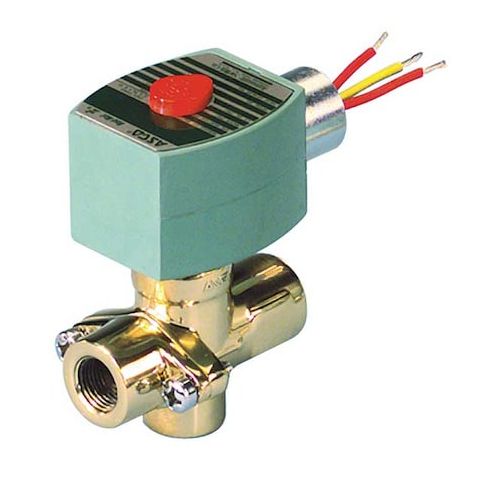

Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/8 in Pipe Size, 120V AC, Self-Cleaning, Brass MPN:8267G011
The ASCO 8267G011 is a reliable and efficient 2-way, 2-position solenoid valve designed for controlling the flow of steam in various industrial applications. With a normally open starting configuration and a self-cleaning feature, this valve ensures smooth and uninterrupted operation, reducing downtime and maintenance costs. Its brass body and PTFE seals make it suitable for use in high-temperature environments up to 280°F and high-pressure applications up to 30 psi. Ideal for use in HVAC systems, steam distribution networks, and other industrial processes, this valve provides precise control and reliable performance, making it a valuable addition to any facility.
Top product features:
- The valve controls the flow of steam by using an energized coil to actuate a plunger that opens or closes the flow path.
- It features a self-cleaning design.
- It is rated for steam up to 280°F and differential pressure up to 30 psi.
Top product applications:
- Steam Control Systems
- Steam Tracing and Heat Transfer Systems
- Process Control Systems for Industrial Applications
The ASCO 8267G011 is a 2-way, 2-position solenoid valve with a normally open starting configuration. It controls the flow of steam by using an energized coil to actuate a plunger that opens or closes the flow path. The valve features a brass body and PTFE seals, rated for steam up to 280°F and differential pressure up to 30 psi. Environmental rating: Indoor, Outdoor
- includes coil and seals.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Open
- - Body Material: Brass
- - Seal Material: PTFE
- - Maximum Fluid Temperature: 280°F
- - Maximum Differential Pressure: 30 psi
- - Coil Included: Yes
- - Coil Insulation Class: H
- - Coil Enclosure: Without Junction Box, Watertight
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Voltage: 120V AC
- - Wattage: 16.1 W
- - Environmental rating: Indoor, Outdoor
- - Ambient Temperature Maximum: 125°F
- - Nominal Pipe Size: 3/8 in
- - Orifice Diameter: 3/8 in
- - Center Line Pipe Center Size: 3-21/64 in
- - Overall Dimensions: Length 3-7/16 in, Height 4-5/16 in, Width 2-1/16 in
- - Coefficient of Volume (Cv): 5.1
- - Standards: UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 4.10
- Package Height: 5.50
- Package Weight: 2.20
