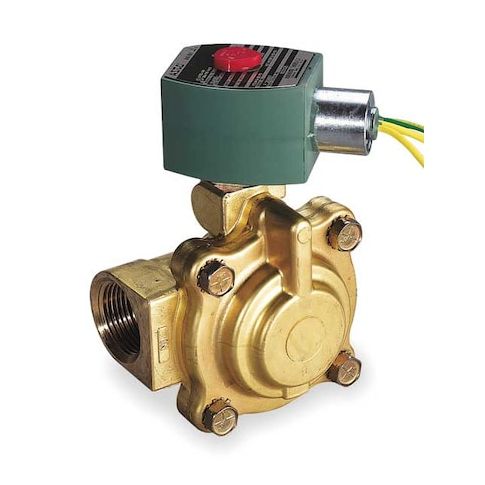

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 120V AC, Diaphragm, Piston MPN:8220G009
The ASCO 8220G009 solenoid valve is a reliable and efficient solution for controlling the flow of hot water and steam in various industrial and process systems. Its pilot-operated diaphragm design ensures precise automation of liquid or gas flow, while its brass body and EPDM seal material provide durability and resistance to corrosion. Suitable for use in pneumatic, hydraulic, and industrial process systems, this valve is ideal for applications such as HVAC, plumbing, and power generation. Its compact design and easy installation make it a valuable addition to any system, offering improved control and reduced maintenance requirements.
Top product features:
- The valve operates with a pilot-operated diaphragm design.
- The valve is designed for controlling the flow of hot water and steam.
- The valve includes a coil and sealing components, providing automated control of liquid or gas flow.
Top product applications:
- Steam Heating Systems
- Industrial Process Systems
- Pneumatic Systems
The ASCO 8220G009 is a normally closed, 2-way solenoid valve that operates with a pilot-operated diaphragm design. Constructed with a brass body and EPDM seal material, it is designed for controlling the flow of hot water and steam. The valve includes an coil and sealing components, providing automated control of liquid or gas flow in pneumatic, hydraulic, or industrial process systems. Rated for operation up to 210°F (hot water) and 300°F (steam). Ambient operating range: 14°F to 140°F.
Key Features:
- - Valve Type: Diaphragm, Piston with 2-Way flow and 2-Position operation
- - Operating Method: Pilot Operated
- - Body Material: Brass with EPDM seals
- - Coil Included: Yes, with Class F insulation and watertight enclosure without junction box
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - Nominal Pipe Size: 1-1/4 in with NPTF inlet and outlet connections
- - Orifice Diameter: 1-1/8 in
- - Flow Coefficient (Cv): 15
- - Operating Pressure Differential: Minimum 5 psi
- Maximum 150 psi for hot water, 50 psi for steam
- - Environmental rating: Indoor, Outdoor, Washdown
- - Dimensions: 5-13/16 in height, 3-21/32 in length, 3-9/16 in width
- - Voltage: 120V AC at 50/60 Hz frequency
- - Wattage: 10.1 W power consumption
- - Standards: CSA, UL Listed
- - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 5.40
- Package Height: 5.50
- Package Weight: 5.30
