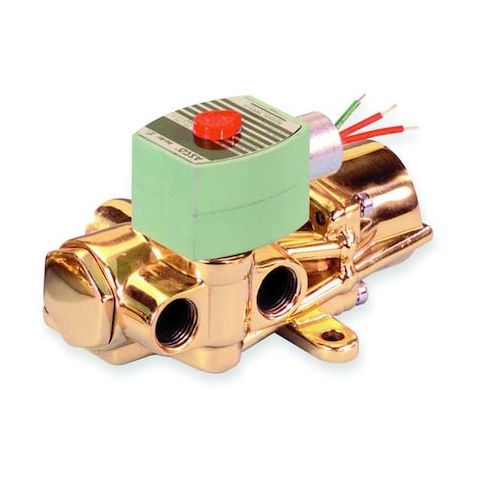

Solenoid Valve, 4-Way, 2-Position, Universal, 3/8 in Pipe Size, 120V AC, NAMUR Mount, Direct Acting MPN:8344G072
The ASCO 8344G072 4-Way, 2-Position Solenoid Valve is a reliable and versatile solution for controlling the flow of air, inert gases, light oil, and water in various industrial applications. Its direct acting design and NAMUR mount configuration make it easy to integrate into existing systems, while its brass body and NBR seals ensure durability and resistance to corrosion. This valve is ideal for use in HVAC, pneumatic, and hydraulic systems, as well as in water treatment and oil and gas applications, where precise control and reliability are critical. Its compact design and easy mounting options make it a convenient choice for a wide range of industries.
Top product features:
- Direct acting operation allows for fast and reliable valve response to electrical signals.
- The valve features a 4-way/2-position design for controlling the flow of multiple fluids.
- The NAMUR mount design enables easy and secure mounting of the valve in a variety of applications.
Top product applications:
- Air Compressor System
- Automotive Brake Systems
- Medical Gas Systems
The ASCO 8344G072 is a direct acting, 4-way/2-position solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a brass body and NBR seals, with inlet and outlet connections both utilizing NPTF threading. This valve operates at 120V AC. The coil is included and rated with Class F insulation and a power consumption of 10.1 watts. It is configured with a default starting position and can be mounted either horizontally or vertically.
Key Features:
- - Valve Design: 4-Way/2-Position with 2 positions
- - Body Material: Brass
- - Seal Material: NBR
- - Operation Type: Direct Acting
- - Nominal Pipe Size: 3/8 in with a 3/8 in orifice diameter
- - Connection Types: Inlet and Outlet both NPTF threaded
- - Coil: Included
- 120V AC, 60 Hz frequency, Class F insulation, 10.1 W power consumption
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - Maximum Fluid Temperature: 180°F
- - Operating Pressure Differential: Minimum 10 psi, Maximum 150 psi for air/inert gas
- Maximum 125 psi for light oil and water
- - Dimensions: Overall Length 6 in, Width 3-3/16 in, Height 4 in
- - Coil Enclosure: Watertight, without junction box
- - Mounting Orientation: Horizontal or Vertical
- - IP Rating: 66
- - Valve Type: NAMUR Mount
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 5.40
- Package Height: 5.20
- Package Weight: 6.90
