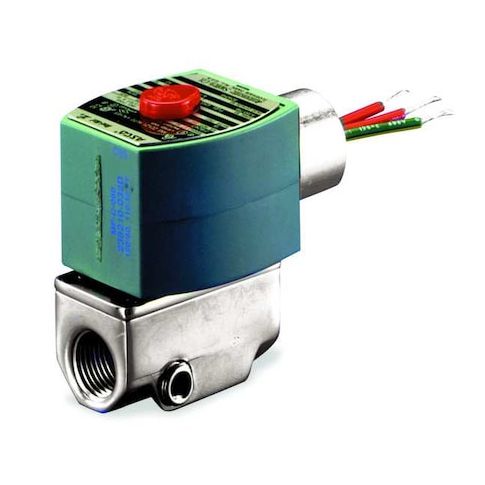

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, Spool, Test Port MPN:8040H008

• The ASCO 8040H008 is a normally closed, direct acting 2-way/2-position solenoid valve designed for gas pilot control of commercial and industrial gas burners. It operates with a 120V AC coil and includes the coil and sealing components. Constructed with an aluminum body and NBR seals, this valve controls the flow of fuel oil and gas. It has a maximum gas capacity of 64,400 BtuH and a flow coefficient (Cv) of 1.2. The valve can be installed horizontally or vertically and is rated for indoor and outdoor environments with an ambient temperature range from -40°F to 125°F.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Closed
  • - Operation Type: Direct Acting
  • - Body Material: Aluminum
  • - Seal Material: NBR (Buna-N)
  • - Coil Electrical: 120V AC, 6.1 W wattage, 50 Hz and 60 Hz frequency, Class F insulation
  • - Coil Enclosure: General Purpose, Watertight, Without Junction Box
  • - Electrical Connections: 18 in Leads
  • - Inlet and Outlet Connection Type: NPTF with NPT thread
  • - Nominal Pipe Size: 3/8 in
  • Orifice Diameter: 5/16 in
  • - Operating Pressure Differential: 0 psi minimum, 15 psi maximum for air/inert gas and water
  • - Dimensions: Overall Length 2 in
  • Width 1-11/16 in
  • Height 2-3/4 in
  • - Includes: Coil and seal
  • - Environmental Rating: Indoor, Outdoor
  • - Valve Type: Spool, Test Port
  • - Center Line Pipe Center Size: 2-5/16 in
  • - Standards: CSA for Safety Shutoff, FM, UL
