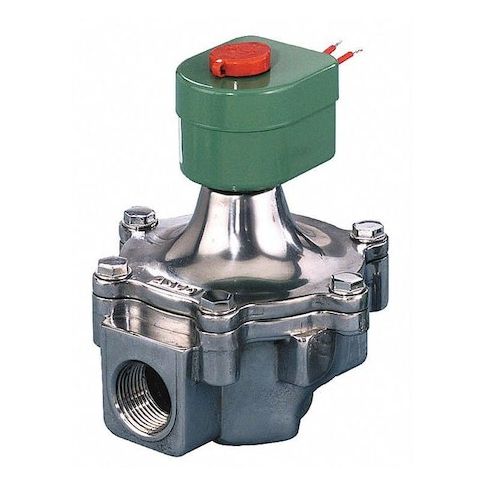

Solenoid Valve, 2-Way, 2-Position, Normally Open, 2 in Pipe Size, 120V AC, High Flow, Direct Acting MPN:8215C083
The ASCO 8215C083 Solenoid Valve is a high-performance, direct-acting valve designed for controlling air and vacuum service in a variety of applications. Suitable for managing flow in industrial settings, this valve provides automated control with a high flow design and a normally open starting configuration. With a maximum operating pressure differential of 25 psi, it supports a wide range of fluids and gases, including air, inert gas, and water. Ideal for use in HVAC systems, pneumatic systems, and industrial processes, this valve offers reliable and efficient control, making it a valuable addition to any facility.
Top product features:
- High Flow design to provide automated control
- Normally Open starting configuration for controlling air and vacuum service
- Direct Acting design to actuate the valve with an energized coil
Top product applications:
- Air and vacuum service control
- Automated control of air and inert gas
- Water flow management
The ASCO 8215C083 Solenoid Valve is a direct-acting, 2-way, 2-position valve with a normally open starting configuration, designed for controlling air and vacuum service. Constructed with an aluminum body, it features a high flow design to provide automated control by using an energized coil to actuate the valve. It is rated for ambient temperatures between 32°F and 125°F and for fluids up to 125°F. This valve is suitable for managing flow with an orifice diameter of 2-1/16 inches and a nominal pipe size of 2 inches, supporting a maximum operating pressure differential of 25 psi for air/inert gas and water.
Key Features:
- - Valve Type: High Flow, Direct Acting
- - Valve Configuration: 2-Way/2-Position, Normally Open
- - Body Material: Aluminum
- - Orifice Diameter: 2-1/16 in
- Nominal Pipe Size: 2 in
- - Operating Pressure Differential: 0 to 25 psi for Air/Inert Gas and Water
- - Coil Electrical: 120V AC, 15.4 W power consumption
- - Coil Enclosure: Watertight, Without Junction Box
- Insulation Class F
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Environmental Rating: Indoor and Outdoor
- NEMA 1
- IP65
- - Includes Coil and Seal
- Seal Material: NBR
- - Response Time: 120 milliseconds
- - Inlet/Outlet Connections: NPTF threads
- Thread Type: NPT
- - Gas Capacity: 3,100,000 BtuH
- - Standards: CSA, FM, UL certified
- - Overall Dimensions: Length 6-3/32 in, Width 6-5/16 in, Height 7-7/16 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.60
- Package Width: 7.90
- Package Height: 6.70
- Package Weight: 5.50
