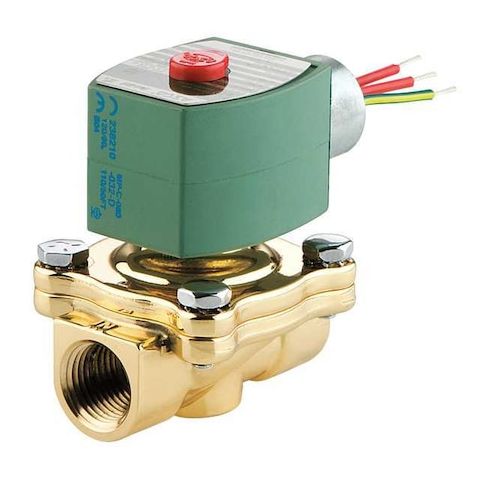

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 120V AC, Manual Operator MPN:8210G022MO

• The ASCO 8210G022MO is a 2-Way, 2-Position pilot-operated solenoid valve designed to control the flow of air, inert gas, light oil, and water. It features a normally closed valve starting configuration and operates with a 120V AC supply. The valve body is constructed from brass and has NPTF threaded inlet and outlet connections with a nominal pipe size of 1-1/2 inches. Its orifice diameter is 1-1/4 inches, allowing a flow coefficient (Cv) of 22.5. It is designed to be mounted vertically.

  Key Features:

  • - Operating pressure differential: Minimum 5 psi
  • Maximum 150 psi for air/inert gas and water, 100 psi for light oil
  • - Operating temperature range: -10°C to 60°C (14°F to 140°F)
  • - Maximum fluid temperature: 180°F
  • - Coil included with insulation class F and wattage of 6.1 W
  • - Electrical connections via 1/2 inch conduit hub
  • - Coil enclosure is watertight without a junction box
  • - IP66 rating
  • NEMA enclosure ratings 1, 2, 3, 3S, 4, 4X
  • - Response time: 1 second
  • - Seal material: NBR (Nitrile)
  • - Dimensions: Overall height 6-1/8 in, length 4-7/16 in, width 3-15/16 in
  • - UL Listed standard compliance
