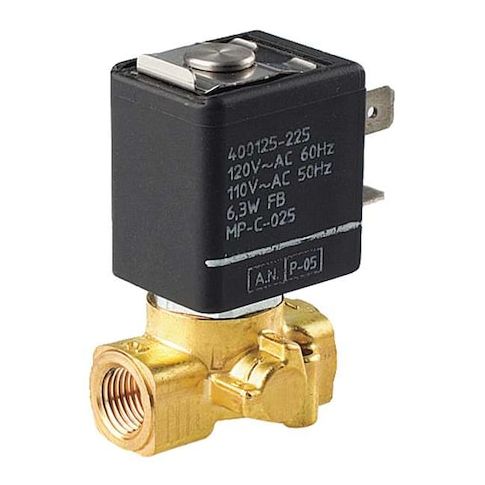

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 240V AC, Compact, Brass, FKM MPN:SC8256B045V
The ASCO SC8256B045V is a compact, direct-acting solenoid valve designed for controlling the passage of fluids such as air, inert gas, light oil, and water. Its normally closed valve configuration with two flow paths makes it ideal for applications where precise control is necessary. The valve's compact design and brass construction ensure durability and reliability, while its FKM seals provide resistance to high temperatures and chemicals. Suitable for use in a variety of industries, including manufacturing, healthcare, and oil and gas, this valve offers precise control and reliable operation, making it an essential component for any fluid control system.
Top product features:
- Compact design
- Normally closed valve configuration with two flow paths
- Direct-acting solenoid valve for controlling the passage of fluids
Top product applications:
- Air Compressor System
- Medical Gas Distribution System
- Water Treatment Plant
The ASCO SC8256B045V is a compact, direct-acting solenoid valve designed for controlling the passage of fluids such as air, inert gas, light oil, and water. It features a normally closed valve configuration with two flow paths, and it can be mounted in either horizontal or vertical orientations. The valve is constructed with a brass body and seals made of FKM material, rated for operation up to 180°F. It is equipped with a watertight coil enclosure and operates at 240V AC with a 6.3-watt coil, including the coil and sealing components in the product package.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Body Material: Brass
- Seal Material: FKM
- - Nominal Pipe Size: 1/8 in
- Orifice Diameter: 1/8 in
- Center Line Pipe Center Size: 1-13/16 in
- - Operating Pressure Differential: Maximum 135 psi (Air/Inert Gas), 80 psi (Light Oil), 126 psi (Water)
- Minimum 0 psi (Air/Inert Gas, Light Oil, Water)
- - Media Compatibility: Air, Inert Gas, Light Oil, Water
- - Electrical: 240V AC, 50 Hz and 60 Hz frequency, 6.3 W coil wattage, DIN electrical connections
- - Coil enclosure IP66-rated, Without Junction Box
- Coil Insulation Class: F
- - Environmental Rating: Indoor
- NEMA Enclosure Rating: 4, 4X
- IP Rating: 66
- - Mounting Orientation: Horizontal or Vertical
- - Response Time: 20 msec
- - Includes: Solenoid coil and sealing components
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.60
- Package Height: 4.20
- Package Weight: 0.40
