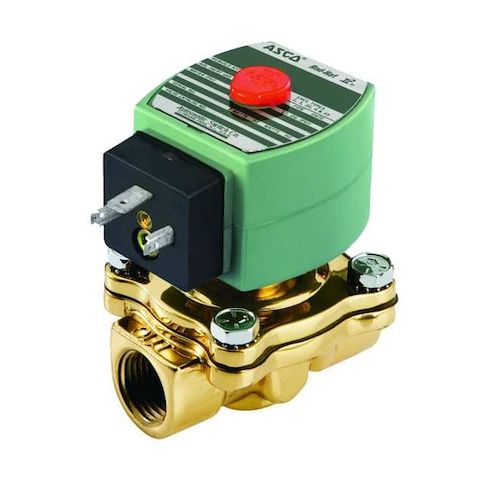

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Flow, Brass MPN:SC8210G094
Control fluid flow with precision and reliability using the ASCO SC8210G094 solenoid valve. Designed for use in a variety of applications, including air, inert gas, and water systems, this 2-way/2-position valve features a normally closed configuration and a high flow rate. Its durable brass body and IP66 ingress protection rating ensure reliable performance in harsh environments. With a fast response time of 1 second and a maximum operating pressure differential of 150 psi, this valve is ideal for use in industrial settings, including manufacturing, oil and gas, and chemical processing. Its compact design and easy installation make it a versatile solution for a range of applications.
Top product features:
- High Flow Rate
- Normally Closed Valve Design
- Pilot-Operated Valve
Top product applications:
- Air Compressor Systems
- Water Treatment Plants
- Industrial Process Control Systems
The ASCO SC8210G094 is a pilot-operated, normally closed solenoid valve designed for controlling the flow of air, inert gas, and water. It features a 2-way/2-position valve design with a 5/8 in orifice diameter and 1/2 in NPTF ports. It is equipped with a brass body, includes a coil and sealing components, and is constructed for vertical mounting orientation. The valve features IP66 ingress protection rating
- Environment: Indoor and Outdoor. It also meets UL Listed standards.
Key Features:
- - Nominal Pipe Size: 1/2 in
- - Inlet/Outlet Connection Type: NPTF threaded ports
- - Valve Orifice Diameter: 5/8 in
- - Valve Starting Configuration: Normally Closed
- - Valve Positions: 2-Position
- - Maximum Operating Pressure Differential: 150 psi (Air/Inert Gas, Water)
- - Operating Ambient Temperature Range: 14 to 140 Degrees F
- - Maximum Fluid Temperature: 180°F
- - Coil Enclosure: Watertight, without junction box
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in Conduit Hub
- - Voltage and Power: 120V AC, 10.1 W wattage
- - Response Time: 1 sec
- - Seal Material: NBR
- - Overall Dimensions: Length 3 in, Height 3-3/8 in, Width 2-5/16 in
- - Environmental Rating: Indoor, Outdoor
- - Mounting Orientation: Vertical
- - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
- - IP Rating: 66
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 3.50
- Package Height: 5.70
- Package Weight: 2.13
