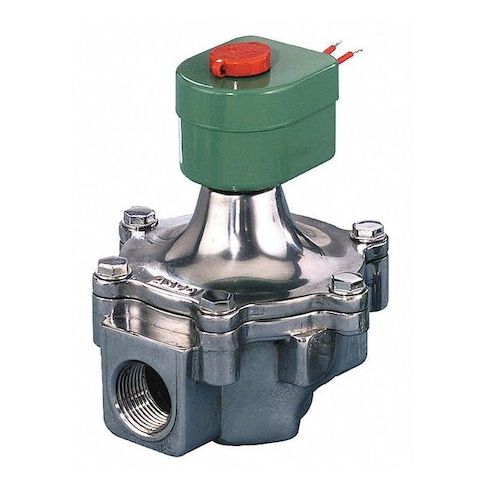

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Flow, Aluminum MPN:8215G020B

• The ASCO 8215G020B is a direct-acting, 2-way/2-position solenoid valve designed for air and vacuum service. It is constructed with an aluminum body and features a normally closed valve starting configuration. This solenoid valve includes a coil and sealing components, providing automated control by using an energized coil to open or close the flow path. It supports a nominal pipe size of 1/2 inch with NPTF inlet and outlet connections and operates at 120V AC with a coil power consumption of 10.1 W. The valve has an orifice diameter of 3/4 inch and a flow coefficient (Cv) of 4.4

• Maximum fluid temperature: 125°F
• Ambient temperature range: 14°F to 140°F. It has an IP65-rated coil enclosure
• intended for indoor and outdoor use
• hazardous-location suitability not specified. The valve’s response time is 120 milliseconds and it has a maximum operating pressure differential of 50 psi for air, inert gas, and water.

  Key Features:

  • - Valve Type: High Flow, Direct Acting
  • - Design: 2-Way/2-Position with Normally Closed starting configuration
  • - Body Material: Aluminum
  • - Connections: 1/2 in NPTF inlet and outlet
  • - Electrical: 120V AC, 60 Hz, 10.1 W coil wattage, 18 in wire leads
  • - Orifice Diameter: 3/4 in
  • Cv (flow coefficient): 4.4
  • - Temperature Ratings: Fluid max 125°F
  • ambient 14°F to 140°F
  • - Environmental rating: Indoor and Outdoor use
  • hazardous-location suitability not specified
  • - Coil Enclosure: Watertight without junction box
  • Insulation Class F
  • - Maximum Operating Pressure Differential: 50 psi for air/inert gas and water
  • - Includes coil and seals
  • - Response Time: 120 msec
  • - Media Compatibility: Air, Vacuum, Fuel Oil, Gas
  • - IP Rating: IP65
  • - Physical Dimensions: Length 5 in
  • Width 5-3/8 in
  • Height 6-27/32 in
  • - Certifications: CSA, FM, UL
