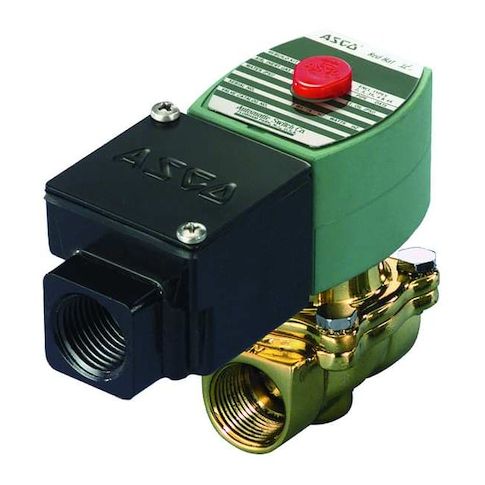

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, High Flow, Brass MPN:JKF8210G095
The ASCO JKF8210G095 is a high-performance solenoid valve designed for a wide range of applications, including controlling the flow of air, inert gas, and water. Its brass body and NPTF threaded connections ensure reliable operation in demanding environments, while its pilot-operated design provides precise control and high flow rates. With a normally closed configuration and 120V AC operation, this valve is ideal for use in industrial settings, laboratory equipment, and medical devices. Its compact design and IP66 rating make it suitable for indoor and outdoor use, offering a reliable solution for applications requiring precise fluid control.
Top product features:
- Pilot-operated design allows for fast and reliable control of fluid flow.
- Normally closed operation means the valve is closed until actuated, providing a safe default state.
- High flow design enables efficient and unobstructed fluid passage.
Top product applications:
- Air Compressor Systems
- Laboratory Gas Control Systems
- Hydraulic Test Rigs
The ASCO JKF8210G095 is a pilot-operated, normally closed 2-way solenoid valve designed to control the flow of air, inert gas, and water. It features a brass body with NPTF threaded inlet and outlet connections sized at 3/4 inch nominal pipe size. The valve operates within the ambient temperature range of 14°F to 140°F and is rated for fluid temperatures up to 180°F.
Key Features:
- - Valve Design: 2-Way/2-Position, pilot operated
- - Operation Configuration: Normally Closed
- - Valve Type: High Flow
- - Body Material: Brass
- - Orifice Diameter: 3/4 in
- - Connections: 3/4 in NPTF inlet and outlet
- - Operating Pressure Differential: 0 to 150 psi for air, inert gas, and water
- - Electrical Voltage: 120V AC at 50/60 Hz frequency
- - Wattage: 10.1 W coil power consumption
- - Coil Features: Includes coil with Junction Box, watertight enclosure, Class F insulation
- - Electrical Connections: 1/2 in Conduit Hub
- - Mounting Orientation: Vertical installation recommended
- - Environmental Rating: Indoor and outdoor use
- - Seals: NBR (Buna-N) seal material included
- - Dimensions: Overall length 4-15/16 in, height 4-1/16 in, width 2-5/16 in
- - Response Time: 1 second
- - IP Rating: IP66
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 4.50
- Package Height: 3.30
- Package Weight: 2.59
