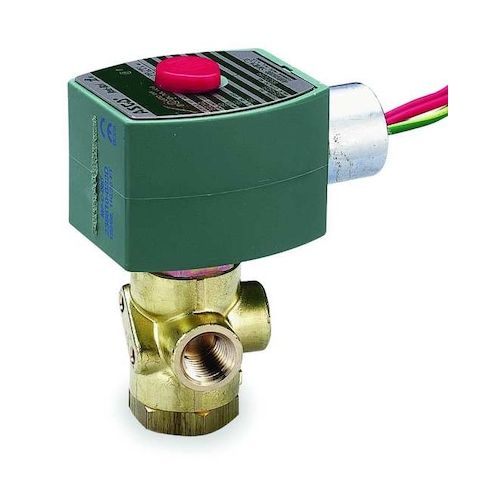

Solenoid Valve, 3-Way, 2-Position, Configurable, 1/4 in Pipe Size, 240V AC, Direct Mount, Brass MPN:EF8320G176

• The ASCO EF8320G176 is a direct-acting, 3-way/2-position solenoid valve consisting of a brass valve body and NBR seals. It is designed for controlling the flow of air, inert gas, light oil, and water, with a maximum fluid temperature rating of 200°F. The valve features a configurable starting position and supports both horizontal and vertical mounting orientations. Coil enclosure: Explosion Proof, Watertight

• Coil insulation class: F
• Includes 1/2 inch conduit electrical connections with 18 inch leads. Environmental Rating: Indoor, Outdoor
• rated for operation on 240V AC with frequencies of 50 and 60 Hz, drawing 17.1 watts of power.

  Key Features:

  • - Valve Design: 3-Way/2-Position with configurable starting (de-energized) flow configuration
  • - Body Material: Brass
  • - Seal Material: NBR
  • - Nominal Pipe Size: 1/4 in
  • Orifice Diameter: 1/8 in
  • Center Line Pipe Size: 2-3/4 in
  • - Operation Type: Direct Acting
  • - Maximum Fluid Temperature: 200°F
  • - Operating Pressure Differential (Max/Min): 50 psi / 0 psi for air/inert gas, light oil, and water
  • - Coil Enclosure: Explosion Proof, Watertight
  • Coil Insulation Class: F
  • - Electrical Connections: 1/2 in Conduit with 18 in Leads
  • - Voltage: 240V AC
  • Frequency: 50 Hz, 60 Hz
  • Wattage: 17.1 W
  • - Mounting Orientation: Horizontal or Vertical
  • - Inlet/Outlet Connection Type: NPTF
  • Thread Type: NPT
  • - Environmental Rating: Indoor, Outdoor
  • - Includes Coil: Yes
  • Includes Seal: Yes
  • - Dimensions: Overall Length 3 in
  • Overall Height 3-3/4 in
  • Overall Width 2 in
  • - Standards: ATEX, CSA, IIECEx, UL Listed
