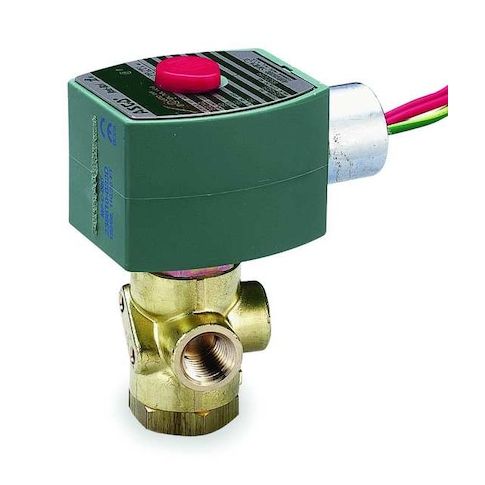

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Quick Exhaust, Brass MPN:EF8320G184

• The ASCO EF8320G184 is a direct-acting, normally closed 3-way/2-position solenoid valve constructed with a brass body and NBR seals. Media compatibility: air, inert gas, light oil, and water

• Applications: analytical and diagnostic equipment, dust collection systems, life sciences, metal stamping, and press room operations. Operating voltage: 120V AC, 50/60 Hz
• Coil insulation: Class F
• Coil enclosure: explosion-proof and watertight per applicable standards. Mounting Orientation: Horizontal or vertical
• Environmental Rating: Indoor and outdoor use.

  Key Features:

  • - Valve Type: Quick Exhaust, 3-Way with 2-Position operation
  • - Operating Pressure Differential: 0 to 150 psi for air, inert gases, light oil, and water
  • - Orifice Diameter: 3/32 in
  • - Nominal Pipe Size: 1/4 in with BSPP inlet and outlet threaded connections
  • - Center Line Pipe Size: 1-3/4 in
  • - Coil Power Consumption: 10.1 W at 120V AC
  • - Electrical Connections: 1/2 in conduit with 18 in leads
  • - Includes coil and seal components
  • - Dimensions: Overall length 3-1/8 in, height 3-7/8 in, width 2-15/16 in
  • - Environmental Rating: Indoor and outdoor use
  • - Mounting Orientation: Horizontal or vertical
  • - Standards: ATEX, CSA, IECEx, UL Listed
