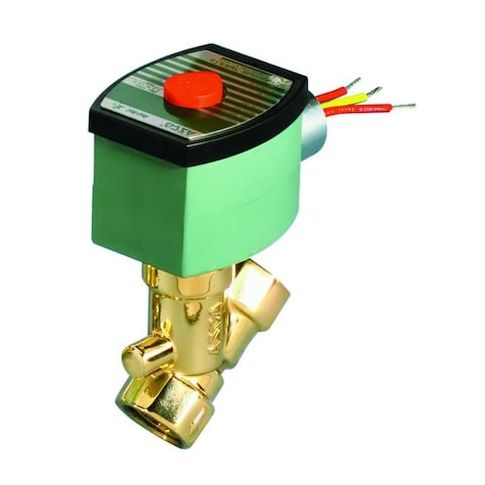

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Flow, Brass MPN:8210G073

• The ASCO 8210G073 is a pilot-operated, 2-way/2-position normally closed solenoid valve designed to control the flow of air, inert gases, and water. It features a brass body and NBR seals, a 3/8 in orifice, and NPTF inlet and outlet connections. The valve provides automated and remote flow control for air, inert gases, and water within the specified operating ranges (5–150 psi for air/inert gas

• 5–125 psi for water
• fluid temperature up to 180°F
• ambient temperature 14°F to 140°F
• 120V AC supply). The valve includes the coil and seal required for installation.

  Key Features:

  • - Valve Type and Configuration: Pilot Operated, Normally Closed, 2-Way/2-Position design
  • - Flow Capacity: Cv of 1.5 with a 3/8 in orifice diameter
  • - Material: Brass body with NBR seals
  • - Connection Type: Inlet and outlet threads are NPTF
  • - Electrical: 120V AC, 6.1 W coil wattage, coil included, with 1/2 in conduit hub electrical connections
  • - IP66 ingress protection
  • suitable for indoor and outdoor use
  • - Operating Pressure: 5 to 150 psi differential for air/inert gas, 5 to 125 psi for water
  • - Temperature Ratings: Fluid temperature up to 180°F
  • ambient temperature range from 14°F to 140°F
  • - Mounting Orientation: Vertical installation recommended
  • - Dimensions: Overall height 3-15/16 in, length 1-15/16 in, width 1-11/16 in
  • - Response Time: Approximately 1 second
  • - Standards: UL Listed
