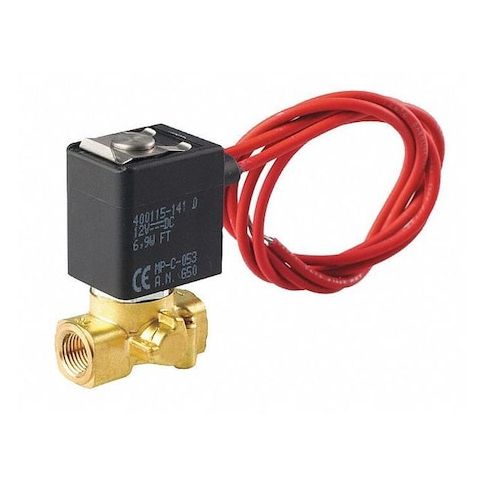

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120V AC, Compact, Brass, FKM MPN:U8256B045V
Free Shipping
In Stock
The ASCO U8256B045V is a compact, reliable, and efficient solenoid valve designed for a wide range of applications, including air, inert gas, light oil, and water control. This 2-way, 2-position valve operates as a normally closed, direct acting valve, making it ideal for use in equipment handling various fluids. Its compact design and IP66 rating ensure durability and resistance to harsh environments, while its fast response time of 20 milliseconds enables precise control. Suitable for indoor use, this valve is perfect for applications in industries such as manufacturing, HVAC, and water treatment, where reliability and precision are crucial.
Top product features:
- The product operates as a normally closed, direct acting valve designed to control the flow of air, inert gases, light oil, and water.
- The valve is rated for installation in equipment handling air, inert gas, light oil, and water within a differential pressure range of 0 to 63 psi and a maximum fluid temperature of 180°F.
- The valve has a response time of 20 milliseconds.
Top product applications:
- Air Compressor Control
- Industrial Automation Systems
- Water Treatment Plant Control
The ASCO U8256B045V is a 2-way, 2-position compact solenoid valve constructed with a brass body and an FKM seal. It operates as a normally closed, direct acting valve designed to control the flow of air, inert gases, light oil, and water. The valve is rated for installation in equipment handling air, inert gas, light oil, and water within a differential pressure range of 0 to 63 psi and a maximum fluid temperature of 180°F. It includes the coil required for actuation and is rated for indoor use with an IP66 rating and NEMA 4, 4X enclosure, allowing for both horizontal and vertical mounting orientations.
Key Features:
- - Nominal Pipe Size: 1/8 in with 2 in center line pipe spacing
- - Orifice Diameter: 1/8 in
- - Operating Pressure Differential: 0 to 63 psi for Air, Inert Gas, Light Oil, and Water
- - Maximum Fluid Temperature: 180°F
- - Voltage and Frequency: 120V AC at 60 Hz
- - Wattage: 6.3 W coil power consumption
- - Coil Enclosure: Open Frame with Class F insulation
- - Electrical Connections: 18 in leads
- - Response Time: 20 milliseconds
- - Inlet/Outlet Connection Type: NPTF with NPT thread type
- - Dimensions: Overall length 1-5/8 in
- height 2-1/4 in
- width 13/16 in
- - Includes Seals and Coil
- - Standards: CSA, NSF, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 1.80
- Package Height: 3.70
- Package Weight: 0.35
