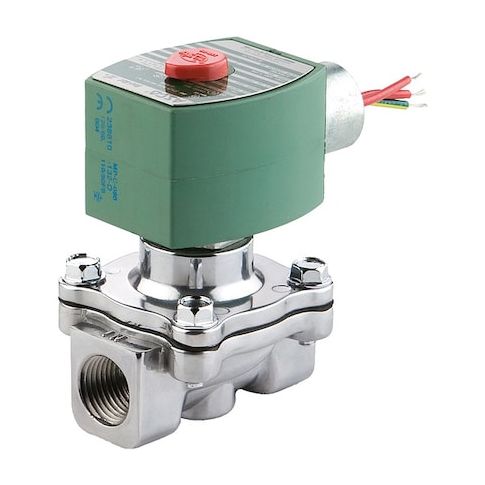

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 120V AC, High Flow, NBR MPN:EF8210G089
The ASCO EF8210G089 Solenoid Valve is a high-performance, pilot-operated valve designed for controlling the flow of air, inert gases, light oil, and water in various industrial applications. Its normally closed, 2-way/2-position design and stainless steel body make it suitable for indoor and outdoor use, with a maximum fluid temperature of 180°F. With a Cv coefficient of 13 and a response time of 1 second, this valve provides fast and efficient control. Ideal for use in HVAC systems, chemical processing, and water treatment, the EF8210G089 offers reliable operation at 120V AC and 60 Hz, making it a valuable addition to any industrial setup.
Top product features:
- The valve features a normally closed, 2-way/2-position design.
- It supports high flow rates with a Cv coefficient of 13.
- The valve operates at 120V AC and has a response time of 1 second.
Top product applications:
- Air Compressor Systems
- Pneumatic Control Systems
- Industrial Process Control Systems
The ASCO EF8210G089 is a pilot-operated solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a normally closed, 2-way/2-position valve design and includes the coil and seal required for operation. Compatible with a nominal pipe size of 1 inch and fitted with NPTF inlet and outlet connections, the valve operates vertically and supports a maximum fluid temperature of 180°F. Its stainless steel body, suitable for indoor and outdoor use, supports electrical operation at 120V AC and 60 Hz.
Key Features:
- - Valve Type and Design: Cv coefficient of 13, 2-Way/2-Position, Normally Closed
- - Operating Pressure Differential: 0 to 150 psi for air/inert gas
- 0 to 125 psi for light oil and water
- - Materials: Stainless steel body with NBR seal material
- - Connections: 1-inch nominal pipe size
- Inlet and outlet connections are NPTF with NPT thread type
- - Electrical: Includes coil (16.1 W wattage) with 1/2 in conduit hub connection
- Coil insulation class F
- - Environmental Rating: Suitable for indoor and outdoor use
- - Dimensions: Overall length 3-3/4 in
- width 3-13/16 in
- height 5-5/16 in
- - Performance: Cv coefficient of 13
- Response time of 1 second
- - Temperature Range: Ambient from 14°F to 140°F
- Fluid temperature maximum 180°F
- - Mounting Orientation: Vertical
- - Certifications: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.50
- Package Width: 7.80
- Package Height: 6.20
- Package Weight: 5.75
