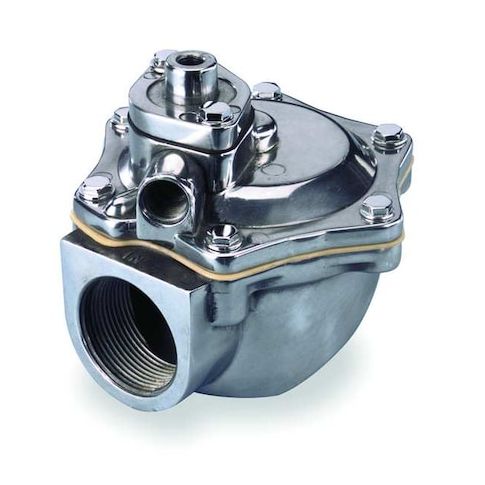

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, Dust Collector, Aluminum, NBR MPN:8353C033
The ASCO 8353C033 is a reliable and efficient 2-way solenoid valve designed for use in reverse jet-type dust collector systems. Its diaphragm-type design and normally closed starting configuration make it ideal for controlling flow in hazardous environments, both indoors and outdoors. With its aluminum body and NBR seals, this valve is built to withstand harsh conditions and ensure a long service life. Suitable for use with air and inert gases, it's a versatile solution for a variety of applications, including industrial processes and manufacturing facilities.
Top product features:
- Diaphragm-type valve design for reliable flow control
- Pilot-operated with a single air pilot actuator for efficient operation
- Normally closed starting configuration for controlled flow and safety
Top product applications:
- Reverse jet-type dust collector systems
- Air and inert gas applications requiring a 2-way solenoid valve
- Hazardous or outdoor environments where a diaphragm-type solenoid valve is needed
The ASCO - 8353C033 is a diaphragm-type, 2-way solenoid valve designed for use with air and inert gases. It operates with a single air pilot actuator and has a normally closed starting configuration, controlling flow by opening or closing a path for media. Designed for reverse jet-type dust collector systems, it is supplied without the solenoid coil. It is suitable for installation in either horizontal or vertical orientations. Environmental rating: Hazardous, Indoor, Outdoor.
Key Features:
- - Valve Design: Diaphragm, 2-Way
- - Operation: Pilot Operated with Single Air Pilot actuator
- - Starting Configuration: Normally Closed
- - Nominal Pipe Size: 3/4 in
- - Orifice Diameter: 3/4 in
- - Body Material: Aluminum
- - Seal Material: NBR
- - Center Line Pipe Center Size: 2-3/16 in
- - Coefficient of Volume (Cv): 10.5
- - Maximum Operating Pressure Differential: 125 psi (Air/Inert Gas)
- - Minimum Operating Pressure Differential: 5 psi (Air/Inert Gas)
- - Maximum Fluid Temperature: 185°F
- - Suitable Media: Air, Inert Gas
- - Environmental Rating: Hazardous, Indoor, Outdoor
- - Mounting Orientation: Horizontal or Vertical
- - Standards: ATEX, CSA, UL Listed
- - Includes Seal: Yes
- - Overall Dimensions (H x L x W): 3-7/16 in x 3-7/16 in x 3-7/16 in
