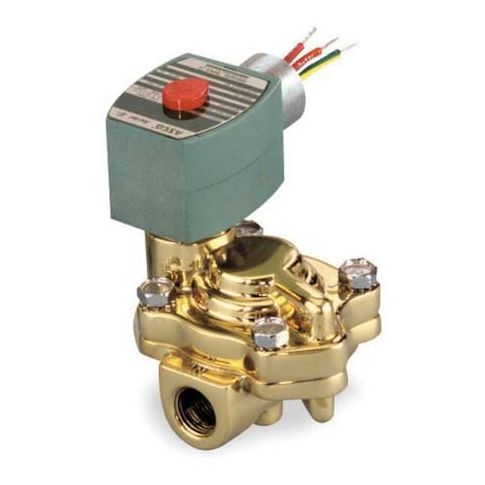

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, Slow-Closing, Brass MPN:8221G005HW
Free Shipping
In Stock
The ASCO 8221G005HW solenoid valve is a reliable and efficient solution for controlling hot water flow in industrial systems. Its slow-closing design and pilot-operated mechanism ensure smooth and precise control, while its brass body construction and EPDM seals provide durability and resistance to corrosion. Suitable for use in applications such as HVAC systems, water treatment plants, and industrial processes, this valve can handle pressures up to 150 psi and temperatures up to 210°F. Its compact design and easy installation make it an ideal choice for a wide range of industries, including manufacturing, healthcare, and food processing.
Top product features:
- The valve is a pilot-operated, slow-closing 2-way/2-position valve.
- The valve features a brass body construction with EPDM seals.
- The valve operates on 120V AC at frequencies of 50/60 Hz.
Top product applications:
- Industrial Water Treatment Systems
- Hot Water Circulation Systems in Hospitals and Clinics
- Laboratory Equipment and Instrumentation
The ASCO 8221G005HW solenoid valve is a pilot-operated, slow-closing 2-way/2-position valve designed for controlling the flow of hot water in industrial systems. It features a normally closed valve starting configuration and utilizes a brass body construction with EPDM seals. The valve includes an coil rated class F insulation for actuation and operates on 120V AC at frequencies of 50/60 Hz. Its design supports an ambient temperature range up to 125°F, with a maximum fluid temperature rating of 210°F specifically for hot water.
Key Features:
- - Valve Design: 2-Way/2-Position, slow-closing, pilot operated
- - Body Material: Brass
- - Seal Material: EPDM
- - Nominal Pipe Size: 3/4 in with 3/4 in orifice diameter
- - Connection Type: NPTF inlet and outlet connections with NPT thread type
- - Operating Pressure Differential: 5 psi minimum and 150 psi maximum for air/inert gas and hot water
- - Flow Coefficient (Cv): 3
- - Electrical: Includes coil rated 6.1 W wattage, 120V AC voltage, 50/60 Hz frequency, with 1/2 in conduit and 18 in leads
- - Coil Enclosure: Watertight without junction box
- - Dimensions: Overall length 2-23/32 in, overall width 3-7/16 in, overall height 4-5/16 in
- - Includes Seal: Yes
- Includes Coil: Yes
- - Standards: CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.20
- Package Height: 5.10
- Package Weight: 2.80
