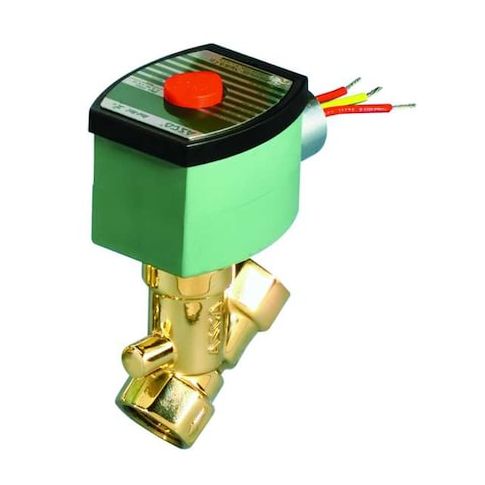

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, Diaphragm, Piston MPN:8030G013

• The ASCO 8030G013 is a pilot-operated, 2-way/2-position solenoid valve designed for controlling the flow of air, inert gases, and water. It features a normally closed valve starting configuration and incorporates both diaphragm and piston valve types. Constructed with a brass body and NBR seal material, this valve's typical applications include dispensing, gas shutoff, tank draining, and vacuum holding. Mounting orientation: Horizontal or Vertical

• IP66 rating
• NEMA enclosure ratings: 1, 2, 3, 3S, 4, 4X
• rated for washdown environments.

  Key Features:

  • - Valve Design: 2-Way/2-Position, pilot operated
  • - Valve Starting Configuration: Normally Closed
  • - Valve Type: Diaphragm, Piston
  • - Body Material: Brass
  • - Seal Material: NBR
  • - Nominal Pipe Size: 3/8 in
  • - Orifice Diameter: 3/8 in
  • - Center Line Pipe Center Size: 3-9/16 in
  • - Operating Pressure Differential: Minimum 15 psi, Maximum 15 psi for air/inert gas and water
  • Minimum 0 psi for light oil
  • - Coefficient of Volume (Cv): 1.8
  • - Coil Included: Yes
  • Coil Insulation Class: F
  • Wattage: 10.1 W
  • Voltage: 120V AC
  • Frequency: 50 Hz, 60 Hz
  • - Coil Enclosure: Without Junction Box, Watertight
  • - Electrical Connections: DIN with 1/2 in Conduit Hub
  • - Inlet/Outlet Connection Type: NPTF with NPT thread type
  • - Mounting Orientation: Horizontal or Vertical
  • - Environmental Rating: Hazardous, Indoor, Outdoor, Washdown
  • IP Rating: 66
  • NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
  • - Dimensions: Overall Height 4 in
  • Overall Length 2 in
  • Overall Width 2 in
  • - Includes Seal: Yes
  • - Standards: CSA, UL Listed
