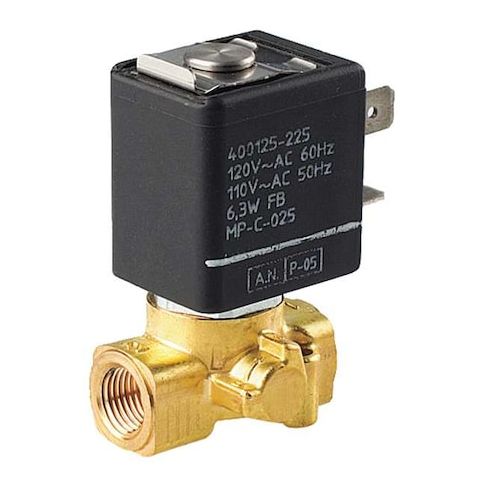

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120/60V AC, Compact, Brass MPN:SC8256B045V
Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120/60V AC, Compact, Brass
The ASCO SC8256B045V is a compact, direct-acting solenoid valve designed for indoor use in a variety of applications. Its normally closed, 2-way/2-position configuration enables automated regulation of fluid or gas passage, making it ideal for controlling the flow of air, inert gas, light oil, and water. With a 1/8 inch orifice and a maximum operating pressure of 135 psi, this valve is suitable for use in a range of industries, including manufacturing, HVAC, and water treatment. Its compact size and durable brass construction make it a reliable choice for applications requiring precise control and efficient operation.
Top product features:
- Normally closed, 2-way/2-position configuration enables automated regulation of fluid or gas passage.
- Direct-acting solenoid valve design allows for fast response time of 20 milliseconds.
- Body material is brass construction for durability and resistance to corrosion.
Top product applications:
- Air Compressor System
- Automated Laboratory Equipment
- Fluid Power Systems
The ASCO - SC8256B045V is a direct-acting solenoid valve with physical dimensions: Length 63/64 inch
- Width 1 inch
- Height 2-1/4 inches, designed for controlling the flow of air, inert gas, light oil, and water. It features a normally closed, 2-way/2-position configuration, enabling automated regulation of fluid or gas passage through its 1/8 inch orifice. Mounting orientation: horizontal or vertical
- intended for indoor use. The valve includes the coil and seal necessary for operation.
Key Features:
- - Body Material: Brass construction
- - Orifice Diameter: 1/8 inch
- - Nominal Pipe Size: 1/8 inch with NPT thread type for inlet and outlet (NPTF connection)
- - Maximum Fluid Temperature: 180°F
- - Operating Pressure Differential Maximum: 135 psi for air/inert gas, 80 psi for light oil, 126 psi for water
- Minimum differential pressure: 0 psi
- - Electrical rating: 120 V AC, 60 Hz
- coil insulation: Class F
- power consumption: 6.3 W
- - Electrical Connection: DIN style
- - Response Time: 20 milliseconds
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Environmental and NEMA Ratings: Indoor use, IP65 rated, NEMA 4X enclosure
- - Seal Material: FKM
- - Physical dimensions: Length 63/64 inch
- Width 1 inch
- Height 2-1/4 inches
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.30
- Package Height: 3.20
- Package Weight: 0.30
Product info last updated on March 12, 2026 10:51am UTC
Category: Pipes, Valves and Fittings
