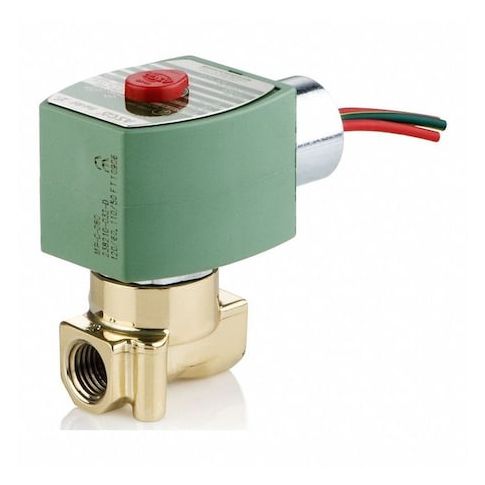

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Flow, FKM MPN:EF8263H332V1V 120/60

• The ASCO EF8263H332V1V 120/60 is a 2-way, normally closed solenoid valve configured to control the flow of fuel oil and gas. It operates on 120V AC power at 60 Hz and features a direct-acting mechanism. The valve body is constructed from stainless steel with FKM seals, Operating ambient temperature range: -13°F to 131°F. It includes the coil and sealing components necessary for installation, and it can be mounted in either horizontal or vertical orientations.

  Key Features:

  • - Valve Type: Direct Acting
  • Flow Coefficient (Cv): 0.73
  • - Valve Positions: 2-Position
  • - Starting Configuration: Normally Closed
  • - Body Material: Stainless Steel
  • - Seal Material: FKM
  • - Nominal Pipe Size: 3/8 in
  • - Inlet/Outlet Connection Type: NPTF, Thread Type: NPT
  • - Coil Enclosure: Explosion Proof, Watertight
  • - Electrical Connections: 1/2 in Conduit Hub
  • - Voltage: 120V AC, Frequency: 60 Hz
  • - Wattage: 17.1 W
  • - Operating ambient temperature range: -13°F to 131°F
  • - Includes: Coil and Seal
  • - Mounting Orientation: Horizontal or Vertical
