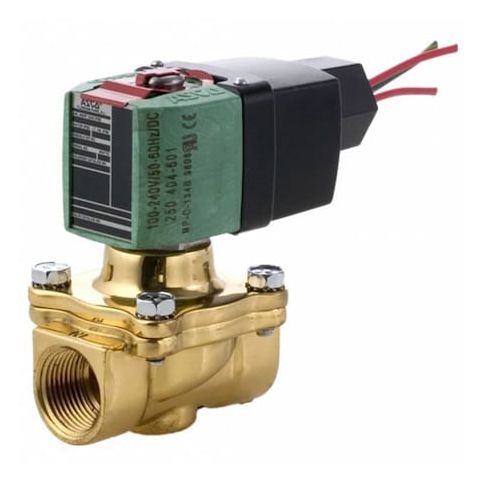

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 24V to 120V AC/DC, Brass, NBR MPN:8210P004 24-120

• The ASCO 8210P004 24-120 is a 2-way, pilot-operated solenoid valve with a normally closed configuration. It features a brass body and includes an coil for actuation. Designed for vertical mounting, this solenoid valve controls the flow of various fluids such as air, aggressive gases and liquids, ammonia, fuel oil, inert gases, light oil, liquid propane gas, natural gas, oxygen, steam, and water. It operates within an ambient temperature range of 14°F to 140°F and can handle fluid temperatures up to 180°F. It uses NPT inlet and outlet connections with a nominal pipe size of 1 inch.

  Key Features:

  • - Valve Type: 2-Way, Pilot Operated, normally closed configuration
  • - Body Material: Brass
  • - Inlet/Outlet Connection: 1 in NPT
  • - Coil Enclosure: Watertight with 1/2 in Conduit Hub electrical connection
  • - Operating Voltage: 24V to 120V AC/DC
  • - Power Consumption: 1.5 W
  • - Flow Capacity: Cv of 13
  • - Operating Pressure Differential: 5 psi minimum to 350 psi maximum for air/inert gas
  • 5 to 100 psi for light oil
  • 5 to 150 psi for water
  • - Media Compatibility: Air, Aggressive Gases and Liquids, Ammonia, Fuel Oil, Inert Gases, Light Oil, Liquid Propane Gas, Natural Gas, Oxygen, Steam, Water
  • - Temperature Ratings: Ambient 14°F to 140°F
  • Fluid maximum 180°F
  • - Seal Material: NBR (Buna-N)
  • - Mounting Orientation: Vertical
  • - Response Time: 1 second
  • - Standards: UL Listed
