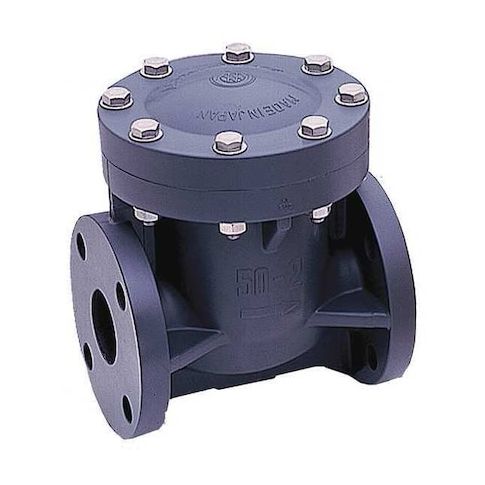

Swing Check Valve, Inline, 3/4 in, Flange x Flange, PVC Body, EPDM Seat Seal MPN:1201007
The Asahi 3/4in Flanged PVC Swing Check Valve is a reliable solution for various applications, including water treatment, irrigation, and HVAC systems. Its single-flow design and inline swing mechanism ensure efficient fluid flow while preventing backflow and contamination. Constructed from durable PVC, this valve withstands high temperatures and pressures, making it suitable for use in temperatures ranging from 30°F to 120°F. With a maximum water pressure of 150 psi, it's an ideal choice for applications where consistent water flow is crucial. Its compact size and easy installation make it a convenient option for plumbers and engineers alike.
Top product features:
- 3/4in Flanged PVC Swing Check Valve has a single flow design for inline applications.
- The valve features a mechanical swing design that allows for horizontal and vertical mounting orientations.
- The valve has a full flow design, allowing for unobstructed flow when fully open.
Top product applications:
- Water Distribution Systems
- Steam Heating Systems
- Wastewater Treatment Plants
ASAHI 1201007 is an inline swing check valve for one-way flow control in chemical and water piping systems. The swing mechanism allows flow in one direction and closes when flow reverses to reduce backflow. This valve has a PVC body, EPDM seal and seat materials, a single full-flow design, and 3/4 in flanged connections on both ends.
Key Features:
- • Swing check mechanism: Hinged disc design for one-way flow control.
- • Valve body style: Inline PVC body construction.
- • Connection size: 3/4 in on side 1 and side 2.
- • Connection type: Flange x Flange
- ANSI Flange Class 150.
- • Flow design: Single, full flow.
- • Cracking pressure: 1 psi.
- • Media: Chemicals, water
- verify application compatibility with PVC body and EPDM seal and seat materials.
- • Pressure rating: 150 psi maximum operating pressure
- 150 psi at 120 degrees F maximum water pressure.
- • Temperature range: 30 degrees F to 120 degrees F.
- • Mounting orientation: Horizontal or vertical
- mounting position: Any.
- • Dimensions: 5.51 in overall length, 3 7/16 in overall height, 3.88 in width.
- • Standards: ASTM D1784 Cell Class 12454A.
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
