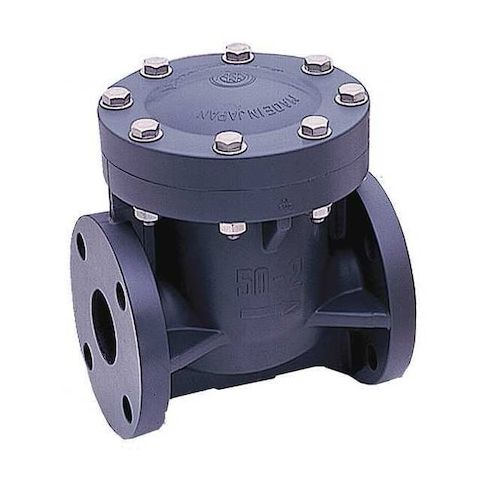

Swing Check Valve, Inline, 1 in, Flange x Flange, PVC Body, EPDM Seat MPN:1201010
This 1in Flanged PVC Swing Check Valve from Asahi is designed for a wide range of applications, including water treatment, chemical processing, and HVAC systems. Its single flow design and inline swing mechanism ensure reliable and efficient operation, while its PVC body material provides excellent corrosion resistance and durability. With a cracking pressure of 1 psi and a maximum water pressure of 150 psi at 120°F, this valve can handle high-pressure applications. Its EPDM seal material ensures a tight seal and long lifespan, making it an ideal choice for various industries and applications.
Top product features:
- Flanged design for easy connection and disconnection
- EPDM seal material for reliable sealing and resistance to chemicals
- Swing check valve design for full flow and reliable backflow prevention
Top product applications:
- Water supply systems
- Steam and condensate piping systems
- Hydraulic systems
This ASAHI swing check valve is a 1 in inline valve with a PVC body and EPDM seat and seal materials. It uses a swing check mechanism for one-way flow and backflow control applications in piping systems handling compatible chemicals or water. The full-flow design, 1 psi cracking pressure, and flanged end connections are intended for inline installation in horizontal or vertical piping.
Key Features:
- Valve type: Swing check valve with inline body design
- Size: 1 in nominal valve size with 1 in connections on both sides
- Connection type: Flange x Flange, ANSI Flange Class 150
- Body material: PVC
- Seal and seat material: EPDM
- Flow design: Single
- full flow
- Cracking pressure: 1 psi
- Pressure rating: 150 psi maximum operating pressure
- 150 psi at 120 Degrees F maximum water pressure
- Temperature range: 30 Degrees F to 120 Degrees F
- Media: Compatible chemicals, water
- Mounting orientation: Horizontal, vertical
- Overall dimensions: 6.3 in overall length, 4 39/64 in overall height, 4-1/4 in width
- Standards: ASTM D1784 Cell Class 12454A
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
