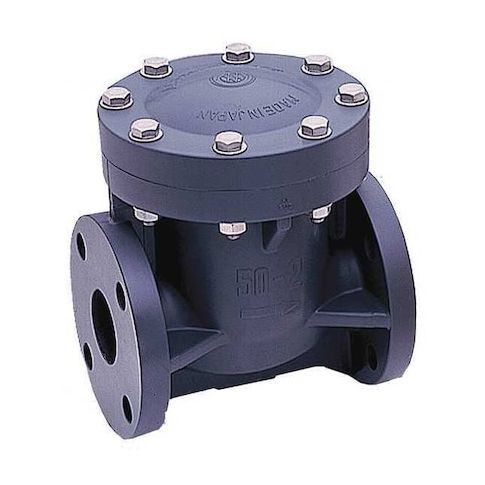

Swing Check Valve, Inline, 1 1/2 in Pipe Size, Flange x Flange, PVC Body MPN:1201015
The Asahi 1-1/2in Flanged PVC Swing Check Valve is a reliable and efficient solution for various applications, including water treatment, chemical processing, and HVAC systems. Its single-flow design and inline swing mechanism ensure smooth operation and minimal pressure drop. The valve's PVC body and EPDM seals withstand temperatures from 30°F to 120°F and pressures up to 150 psi, making it suitable for a wide range of industrial and commercial uses. Its compact size and horizontal/vertical mounting orientation make it easy to install in tight spaces, while its 1 psi cracking pressure ensures safe and controlled flow.
Top product features:
- 1-1/2in Flanged PVC Swing Check Valve features a single flow design for efficient fluid flow.
- The valve has an inline swing mechanism for easy operation and maintenance.
- The valve body is made of PVC material for corrosion resistance and durability.
Top product applications:
- Water treatment plants
- Industrial process control systems
- Pumping stations
ASAHI swing check valve for compatible water and chemical piping applications. This inline valve uses a swing check mechanism for one-way flow applications and backflow-reduction applications. It features a PVC body with EPDM seal and seat materials, 1-1/2 in. flanged connections on both sides, and mounting orientation horizontal or vertical, per manufacturer specifications.
Key Features:
- Swing check design with a hinged disc-style check mechanism.
- PVC body with inline body style.
- 1-1/2 in. connection size on side 1 and side 2.
- Flange x Flange connection type, ANSI Flange Class 150.
- Single-flow design with full-flow operation and a Cv of 81.
- 1 psi cracking pressure.
- 150 psi maximum operating pressure
- 150 psi maximum water pressure at 120 Degrees F.
- Temperature range: 30 Degrees F to 120 Degrees F.
- EPDM seal and seat material.
- Mounting orientation: horizontal or vertical, per manufacturer specifications.
- Dimensions: 7.09 in. overall length, 4-5/16 in. overall height, 5 in. width.
- ASTM D1784 Cell Class 12454A standard.
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
